Data Sheet
ADRF6820
Rev. C | Page 39 of 45

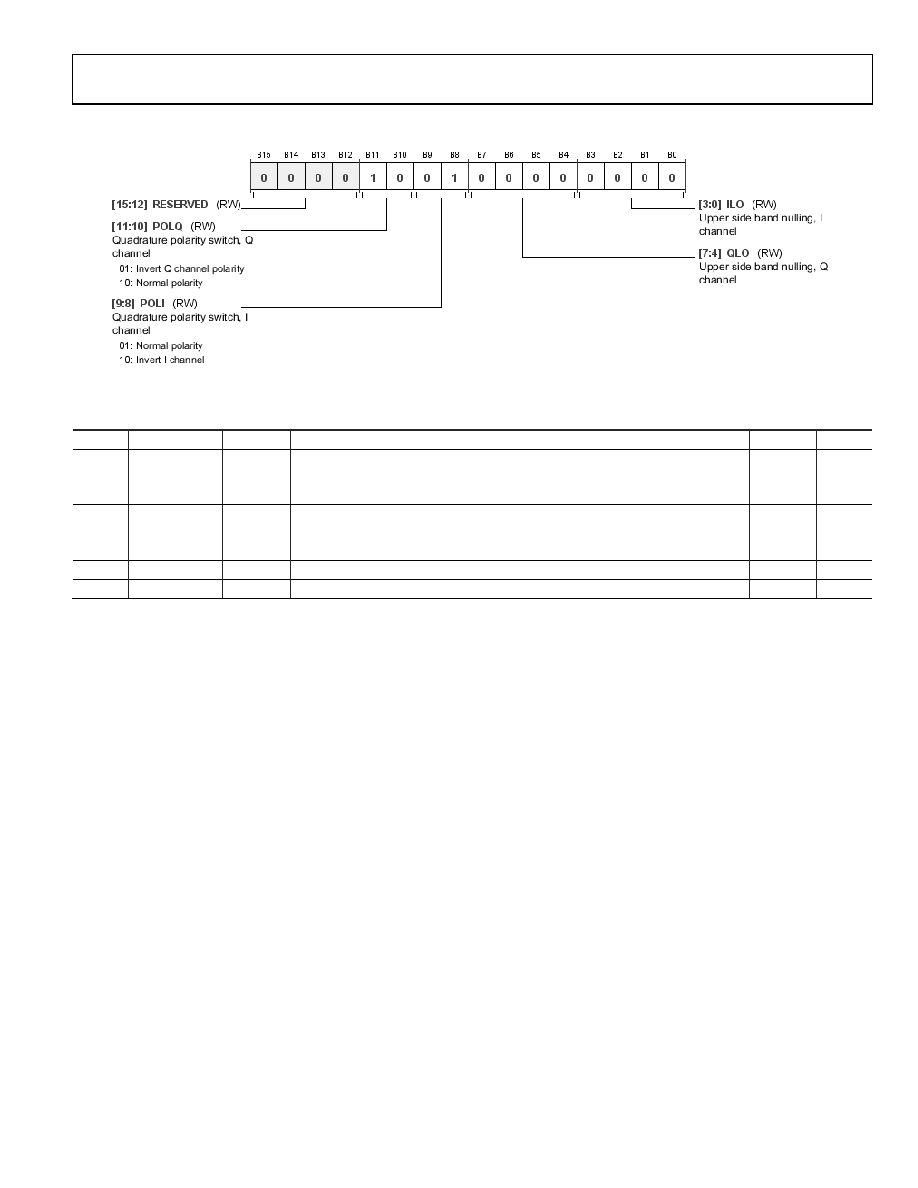

Address: 0x32, Reset: 0x0900, Name: MOD_CTL0
Table 30. Bit Descriptions for MOD_CTL0
Bits
Bit Name
Settings
Description
Reset
Access
[11:10]
POLQ
Quadrature polarity switch, Q channel
0x2
RW
01
Invert Q channel polarity
10
Normal polarity
[9:8]
POLI
Quadrature polarity switch, I channel
0x1
RW
01
Normal polarity
10
Invert I channel
[7:4]
QLO
Upper side band nulling, Q channel
0x0
RW
[3:0]
ILO
Upper side band nulling, I channel
0x0
RW
