Data Sheet
ADRF6820
Rev. C | Page 43 of 45

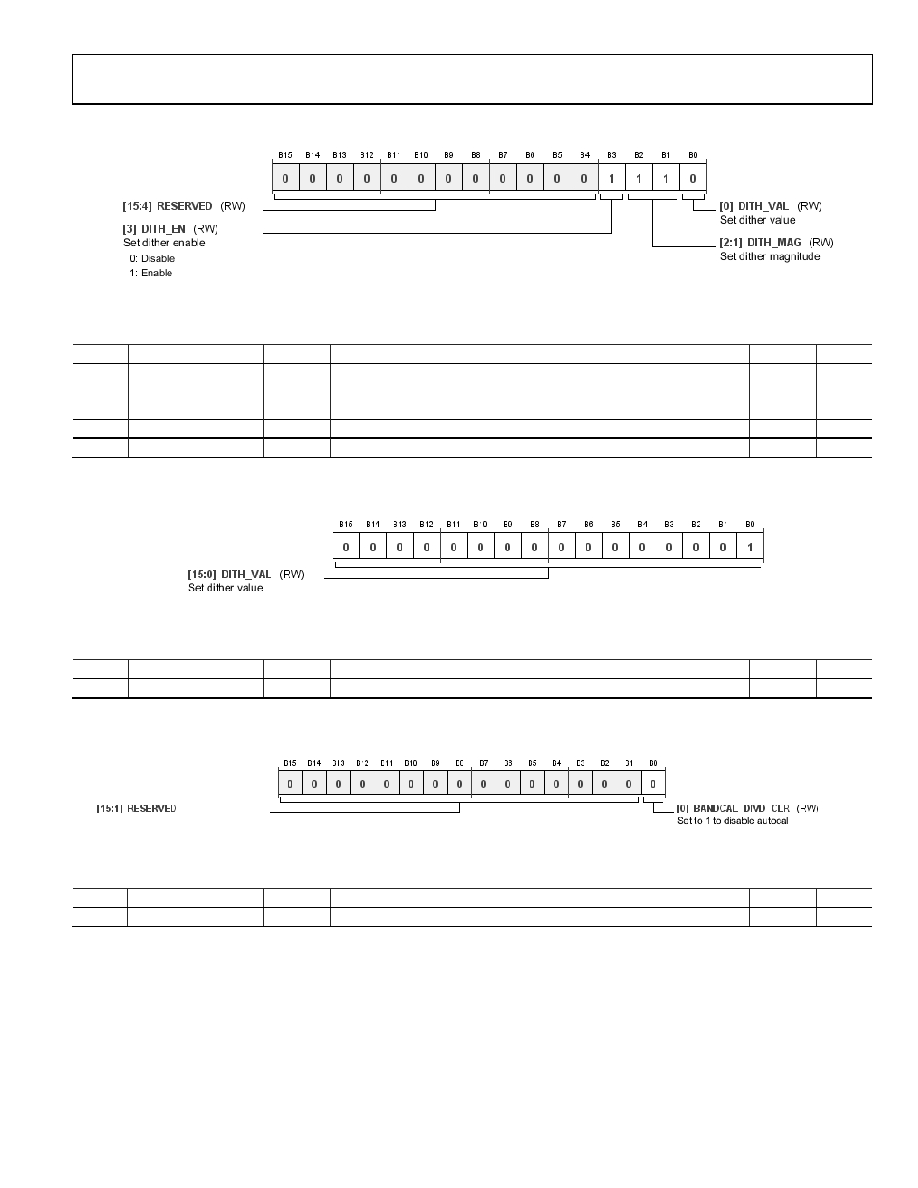

Address: 0x42, Reset: 0x000E, Name: DITH_CTL1
Table 34. Bit Descriptions for DITH_CTL1
Bits
Bit Name
Settings
Description
Reset
Access
3
DITH_EN
Set dither enable
0x1
RW
0
Disable
1
Enable
[2:1]
DITH_MAG
Set dither magnitude
0x3
RW
0
DITH_VAL
Set dither value
0x0
RW
Address: 0x43, Reset: 0x0001, Name: DITH_CTL2
Table 35. Bit Descriptions for DITH_CTL2
Bits
Bit Name
Settings
Description
Reset
Access
[15:0]
DITH_VAL
Set dither value
0x1
RW
Address: 0x44, Reset: 0x0000, Name: DIV_SM_CTL
Table 36. Bit Descriptions for DIV_SM_CTL
Bits
Bit Name
Settings
Description
Reset
Access
0
BANDCAL_DIVD_CLR
Set to 1 to disable autocal
0x0
RW
