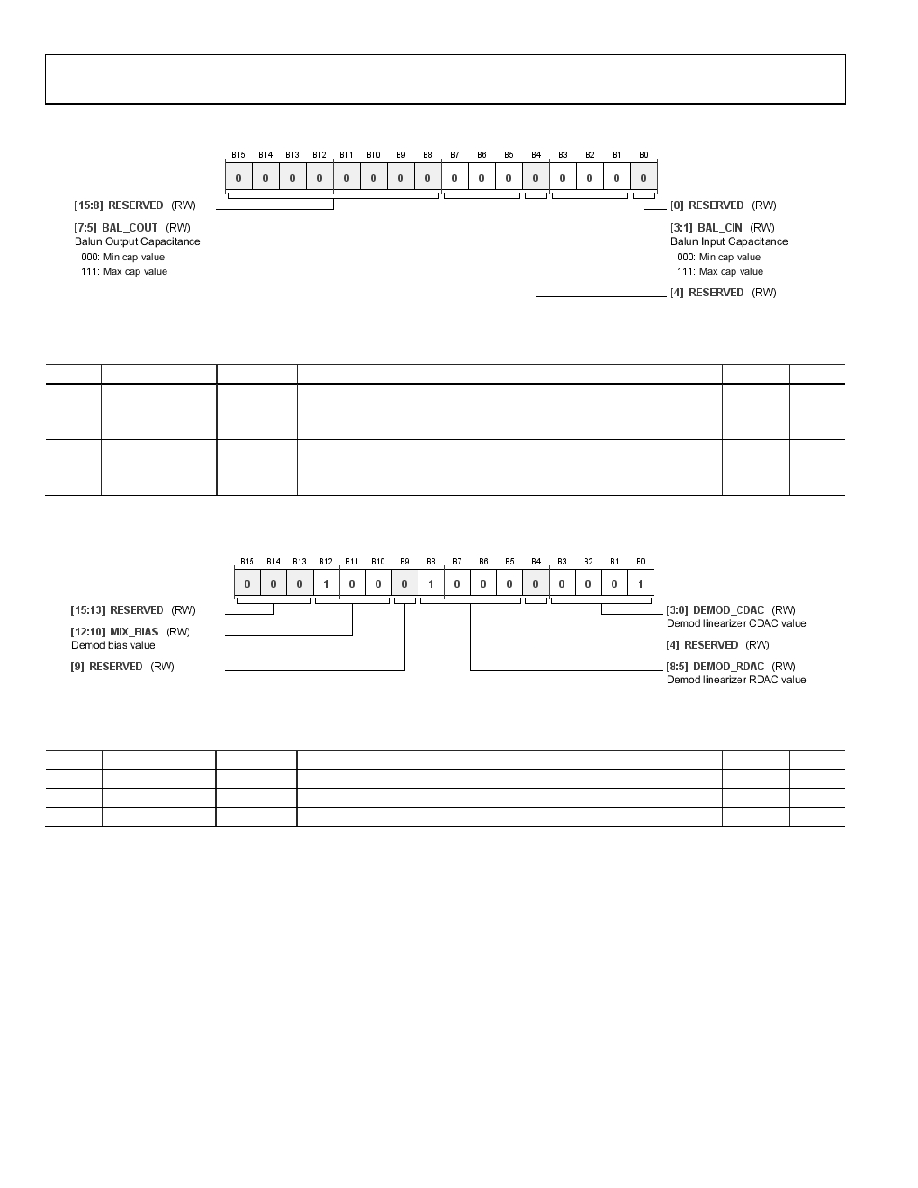

ADRF6820
Data Sheet
Rev. C | Page 38 of 45
Address: 0x30, Reset: 0x0000, Name: BALUN_CTL
Table 28. Bit Descriptions for BALUN_CTL
Bits
Bit Name
Settings
Description
Reset
Access
[7:5]
BAL_COUT
Balun output capacitance
0x0
RW
000
Minimum capacitance value
111
Maximum capacitance value
[3:1]
BAL_CIN
Balun input capacitance
0x0
RW
000
Minimum capacitance value
111
Maximum capacitance value
Address: 0x31, Reset: 0x1101, Name: MIXER_CTL
Table 29. Bit Descriptions for MIXER_CTL
Bits
Bit Name
Settings
Description
Reset
Access
[12:10]
MIX_BIAS
Demodulator (demod) bias value
0x4
RW
[8:5]
DEMOD_RDAC
Demodulator linearizer RDAC value
0x8
RW
[3:0]
DEMOD_CDAC
Demodulator linearizer CDAC value
0x1
RW



Html Pages
