6. System Modules
System modules encompass power domains, resets, clocks, system timers, power management, and encryption.
Figure 6.1 shows these modules and how they interact.

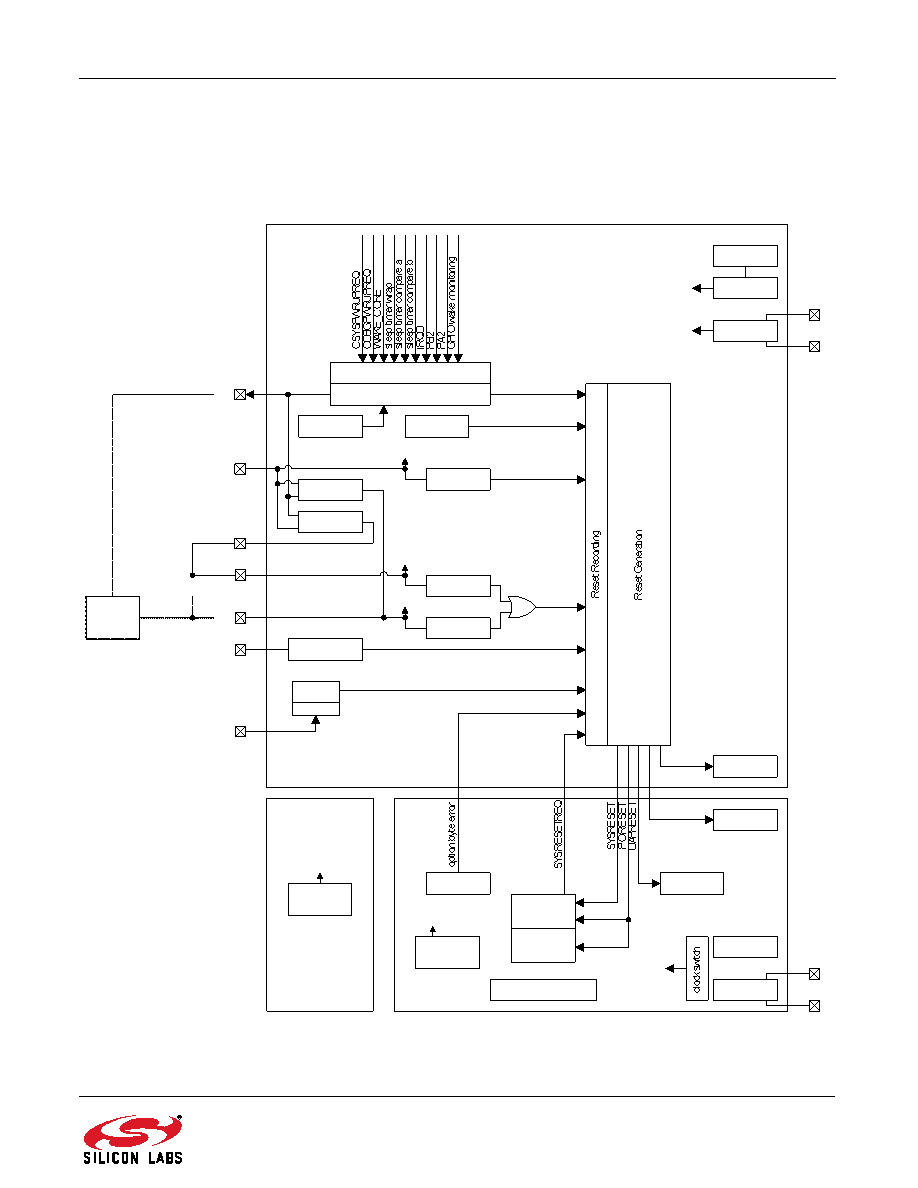

Figure 6.1. System Module Block Diagram
nRESET
VDD_PADS
VREG_OUT
VDD_CORE
VDD_MEM
POR HV
POR LVcore
POR LVmem
VREG_1V8
VREG_1V25
always-on supply
mem supply
core supply
POR LV
POR HV
Reset Filter
External
Regulator
optional
connections for
external regulator
OSCRC
OSC32K
DIV10
CLK1K
CLK32K
OSC32A
OSC32B
JRST
always-on domain
mem domain
ARM®
Cortex
 -M3
Debug
AHB-AP
core domain
ARM®
Cortex
 -M3
CPU
FLITF
Flash
RAM
OSC24M
OSCHF
OSCA
OSCB
SYSCLK
CDBGRSTREQ
Power Management
Watchdog
Sleep Timer
watchdog
deep sleep
wakeup
REG_EN
recomended
connections for
internal regulator
PRESETHV
PRESETLV
registers
registers
Security Accelerator
SWJ
Wakeup Recording
always-on supply
mem supply
JTAG-TAP
