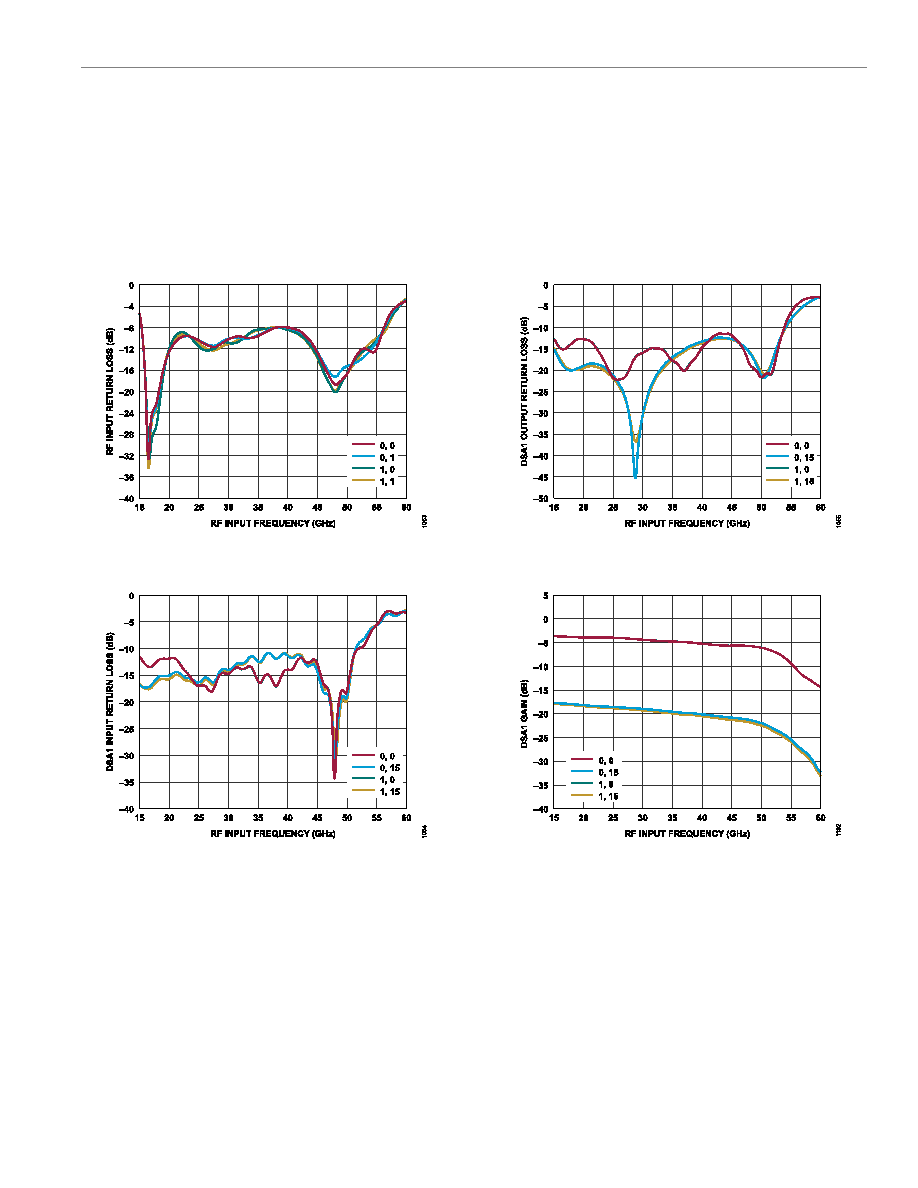

30 / 141 page  Data Sheet ADMV1455 TYPICAL PERFORMANCE CHARACTERISTICS analog.com Rev. 0 | 30 of 141 RETURN LOSS The supply voltage = 1.8V (all supplies) and TC = 25°C, unless otherwise noted. All measurements taken with PRF = −45dBm, PLO = −5dBm, PIF = −15dBm, maximum gain, RF LPF setting = 0x00 (highest cutoff), RF HPF setting = 0x3F (lowest cutoff), and IF BPF settings = 8GHz, unless otherwise noted. Probe measurements, where applicable, were performed by probing the trace terminated out of the device. Figure 56. RF Input Return Loss vs. RF Input Frequency at Various RF Bands and DSA2 Settings, at 25°C Figure 57. DSA1 Input Return Loss vs. RF Input Frequency at Various RF Bands and DSA1 Settings, at 25°C Figure 58. DSA1 Output Return Loss vs. RF Input Frequency at Various RF Bands and DSA1 Settings, at 25°C Figure 59. DSA1 Gain vs. RF Input Frequency at Various RF Bands and DSA1 Settings, at 25°C |
|
