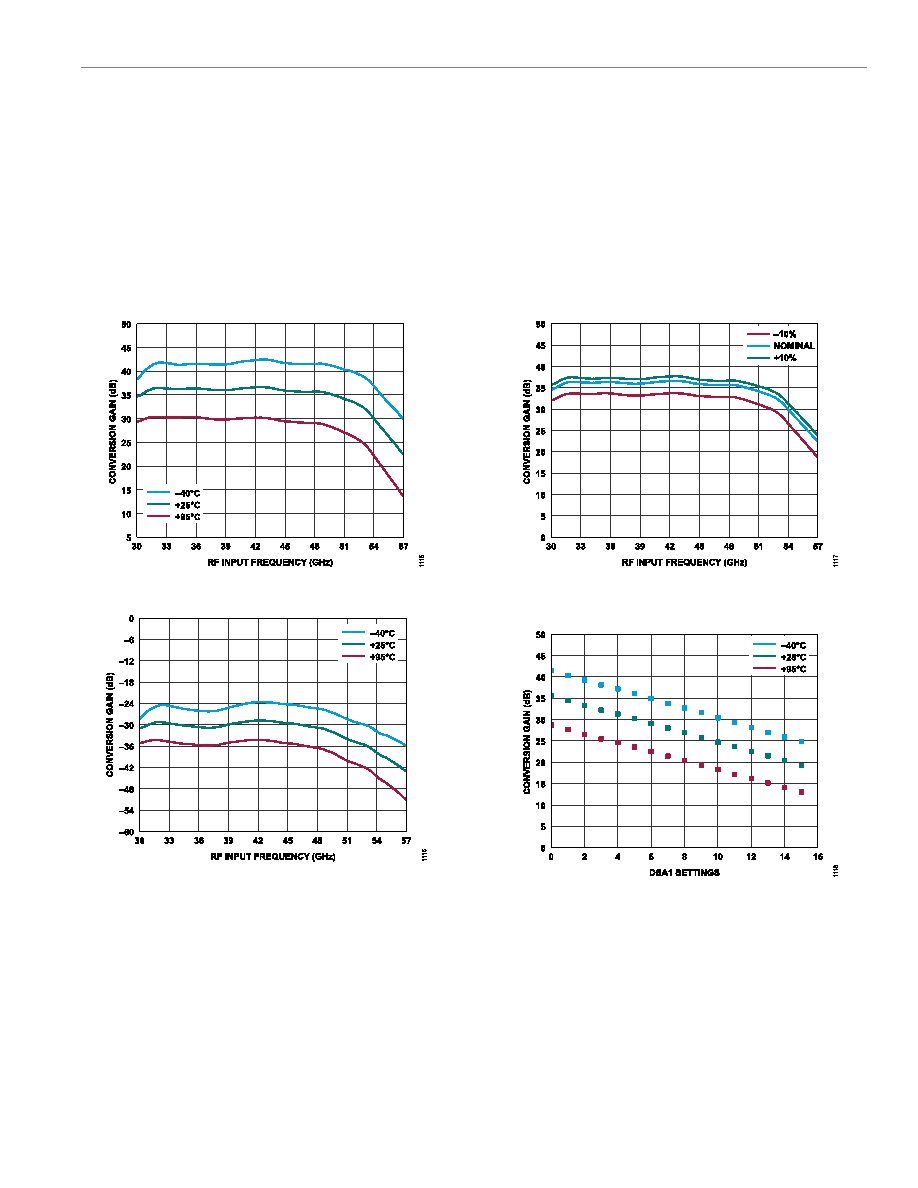

47 / 141 page  Data Sheet ADMV1455 TYPICAL PERFORMANCE CHARACTERISTICS analog.com Rev. 0 | 47 of 141 IF MODE, DSA_IN, HIGH BAND All measurements use DSA_IN as an input and IF as an output, with the RF high-band settings. DSA_OUT is connected to RF_IN on-board with a short 50Ω trace. The supply voltage = 1.8V (all supplies) and TC = 25°C, unless otherwise noted. All measurements taken with PRF = −45dBm, PLO = −5dBm, fRF = 49GHz, fIF = 8GHz, fLO = 41GHz (upper sideband), maximum gain, RF LPF setting = 0x00 (highest cutoff), RF HPF setting = 0x3F (lowest cutoff), LO tunable filter wideband high settings, and IF BPF settings = 8GHz, unless otherwise noted. Trace and connector losses are de-embeded to the RF pins (see the RF and IF input and output pins in Figure 3). Conversion Gain Figure 111. Conversion Gain vs. RF Input Frequency at Various Temperatures Figure 112. Conversion Gain vs. RF Input Frequency at Various Temperatures, Minimum Gain Figure 113. Conversion Gain vs. RF Input Frequency at Various Supply Voltages Figure 114. Conversion Gain vs. DSA1 Settings at Various Temperatures, Single fRF = 49GHz |
|
