Data Sheet
ADMV1455
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. 0 | 19 of 141
IF MODE, RF_IN, HIGH BAND
All measurements use RF_IN as an input and IF as an output, with the RF high-band settings. The supply voltage = 1.8V (all supplies) and TC =
25°C, unless otherwise noted.
All measurements taken with PRF = −45dBm, PLO = −5dBm, fRF = 49GHz, fIF = 8GHz, fLO = 41GHz (upper sideband), maximum gain, RF LPF
setting = 0x00 (highest cutoff), RF HPF setting = 0x3F (lowest cutoff), IF band-pass filter (BPF) settings = 8GHz (see Table 24), and LO tunable
filter wideband high settings (see Table 22), unless otherwise noted. Trace and connector losses are de-embeded to the RF pins (see the RF
and IF input and output pins in Figure 3).

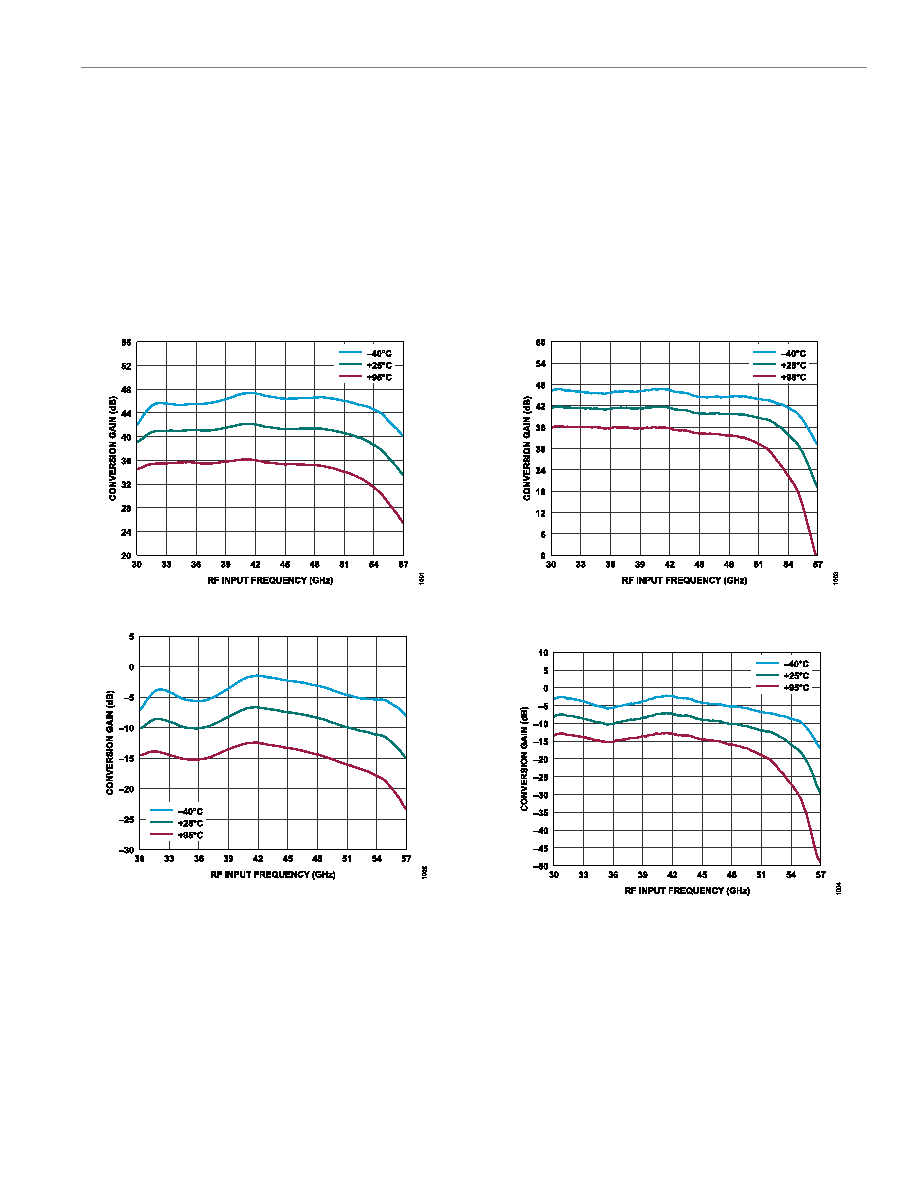

Conversion Gain
Figure 4. Conversion Gain vs. RF Input Frequency at Various Temperatures
Figure 5. Conversion Gain vs. RF Input Frequency at Various Temperatures,
Minimum Gain
Figure 6. Conversion Gain vs. RF Input Frequency at Various Temperatures,
LO Filter Wideband Low Setting
Figure 7. Conversion Gain vs. RF Input Frequency at Various Temperatures,
LO Filter Wideband Low Setting, Minimum Gain
