Data Sheet

ADMV1455

TYPICAL PERFORMANCE CHARACTERISTICS

analog.com

Rev. 0 | 22 of 141

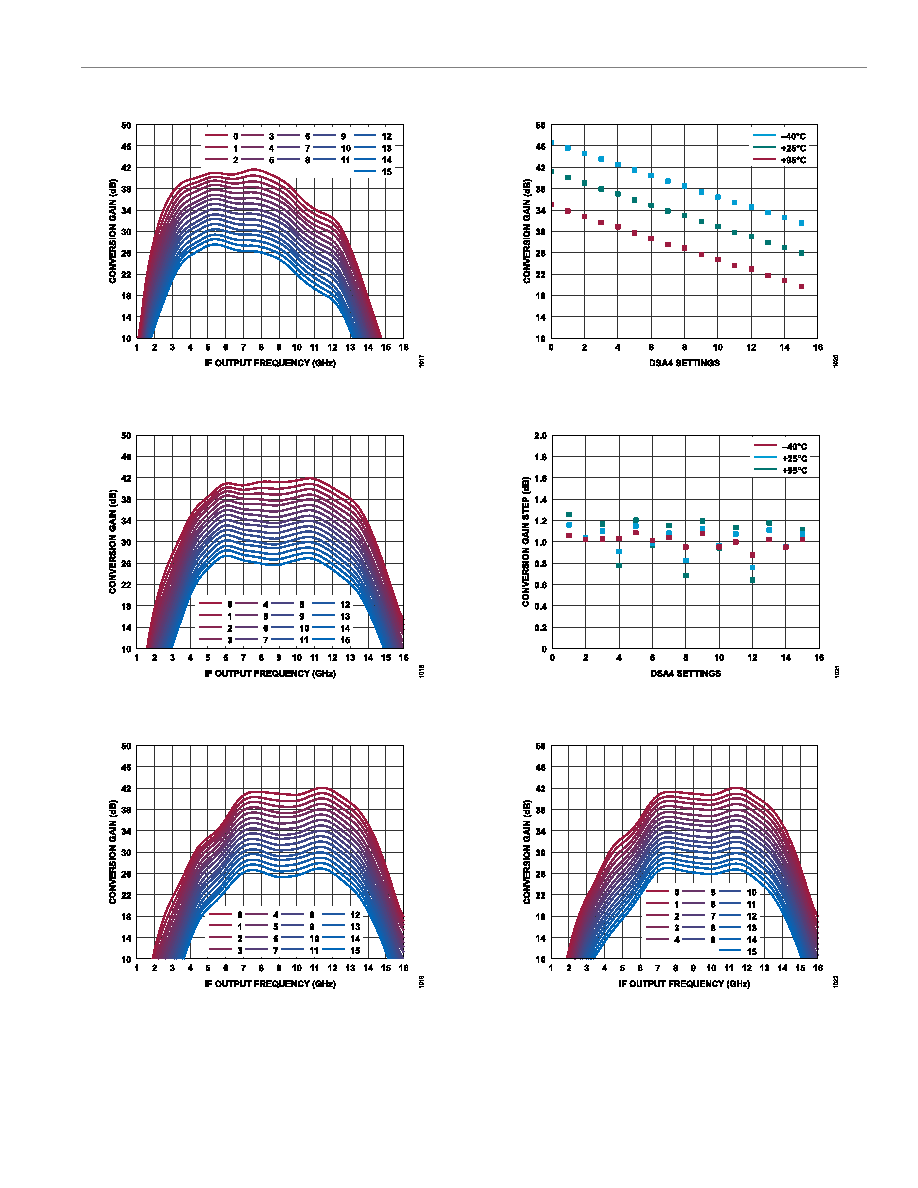

Figure 20. Conversion Gain vs. IF Output Frequency at Various DSA4

Settings, 6GHz IF Filter

Figure 21. Conversion Gain vs. IF Output Frequency at Various DSA4

Settings, 8GHz IF Filter

Figure 22. Conversion Gain vs. IF Output Frequency at Various DSA4

Settings, 10GHz IF Filter

Figure 23. Conversion Gain vs. DSA4 Settings at Various Temperatures,

Single fRF = 49GHz

Figure 24. Conversion Gain Step vs. DSA4 Settings at Various Temperatures,

Single fRF = 49GHz

Figure 25. Conversion Gain vs. IF Output Frequency at Various DSA5

Settings, 10GHz IF Filter
