Data Sheet
ADMV1455
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. 0 | 36 of 141

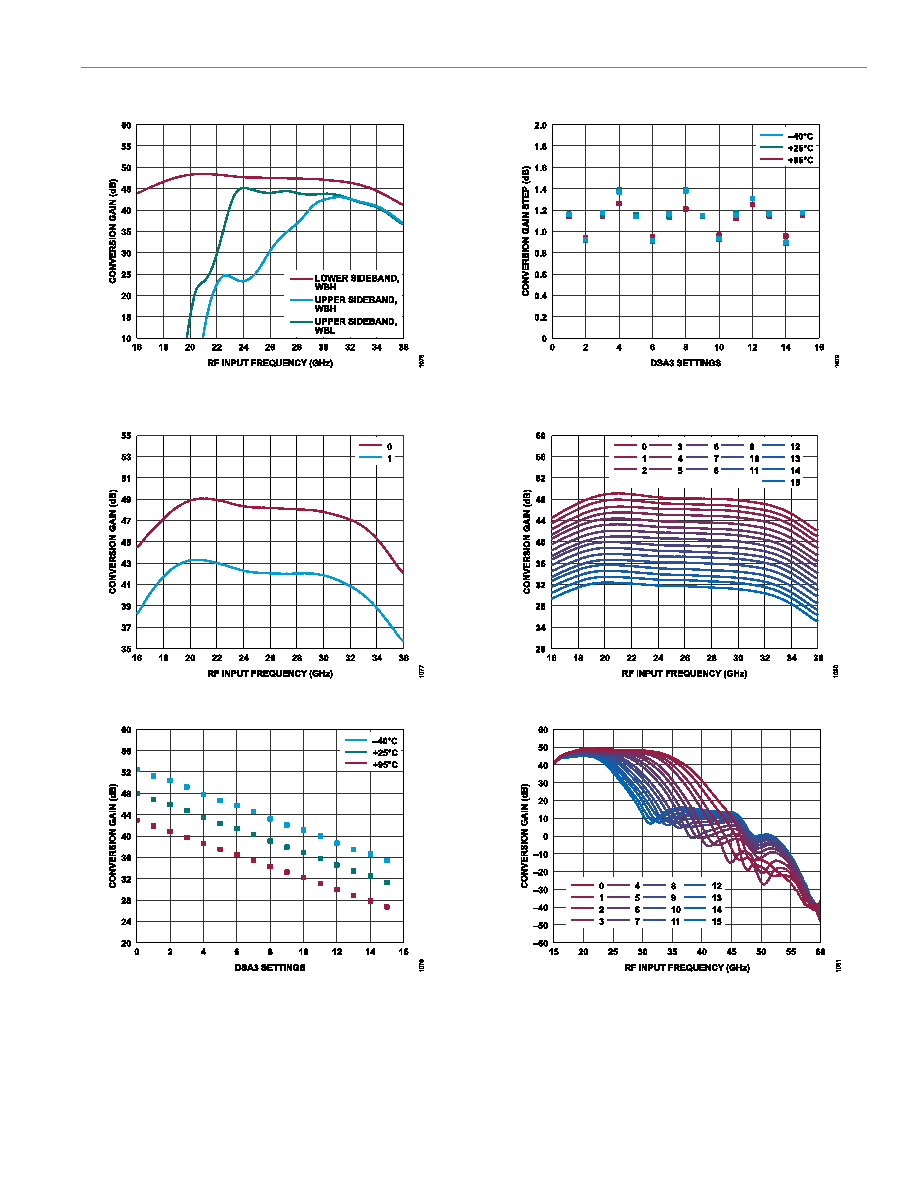

Figure 78. Conversion Gain vs. RF Input Frequency, Upper Sideband and
Lower Sideband at Various LO Tunable Filter Settings
Figure 79. Conversion Gain vs. RF Input Frequency at Various DSA2 Settings
Figure 80. Conversion Gain vs. DSA3 Settings at Various Temperatures,
Single fRF = 29GHz
Figure 81. Conversion Gain Step vs. DSA3 Settings at Various Temperatures,
Single fRF = 29GHz
Figure 82. Conversion Gain vs. RF Input Frequency at Various DSA3 Settings
Figure 83. Conversion Gain vs. RF Input Frequency at Various RF Low-Pass
Filter Settings
