Data Sheet

ADMV1455

TYPICAL PERFORMANCE CHARACTERISTICS

analog.com

Rev. 0 | 35 of 141

IF MODE, RF_IN, LOW BAND

All measurements use RF_IN as an input and IF as an output, with the RF low-band settings. The supply voltage = 1.8V (all supplies) and TC =

25°C, unless otherwise noted.

All measurements taken with PRF = −55dBm, PLO = −5dBm, fRF = 29GHz, fIF = 8GHz, fLO = 37GHz (lower sideband), maximum gain, RF

LPF setting = 0x00 (highest cutoff), LO tunable filter wideband high settings, and IF BPF settings = 8GHz, unless otherwise noted. Trace and

connector losses are de-embeded to the RF pins (see the RF and IF input and output pins in Figure 3).

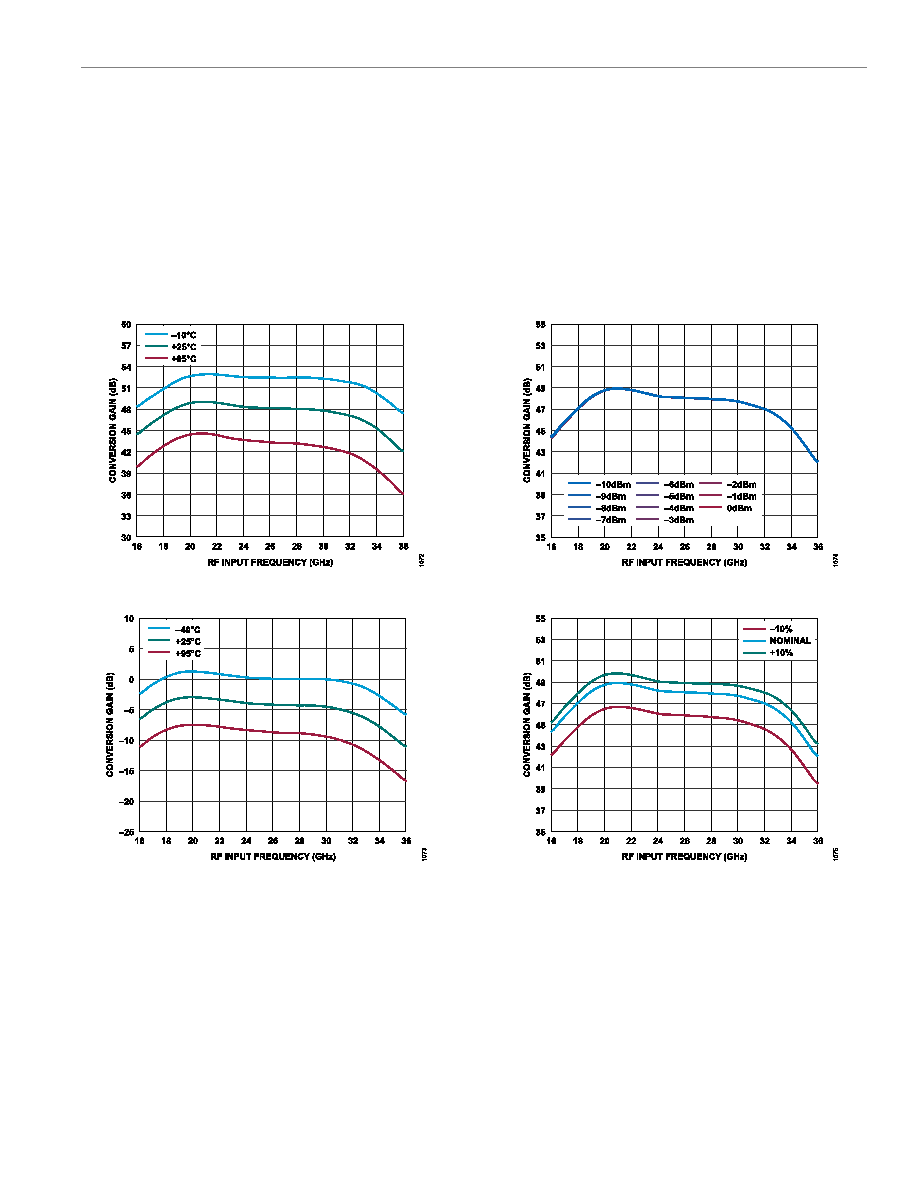

Conversion Gain

Figure 74. Conversion Gain vs. RF Input Frequency at Various Temperatures

Figure 75. Conversion Gain vs. RF Input Frequency at Various Temperatures,

Minimum Gain

Figure 76. Conversion Gain vs. RF Input Frequency at Various LO Powers

Figure 77. Conversion Gain vs. RF Input Frequency at Various Supply

Voltages
