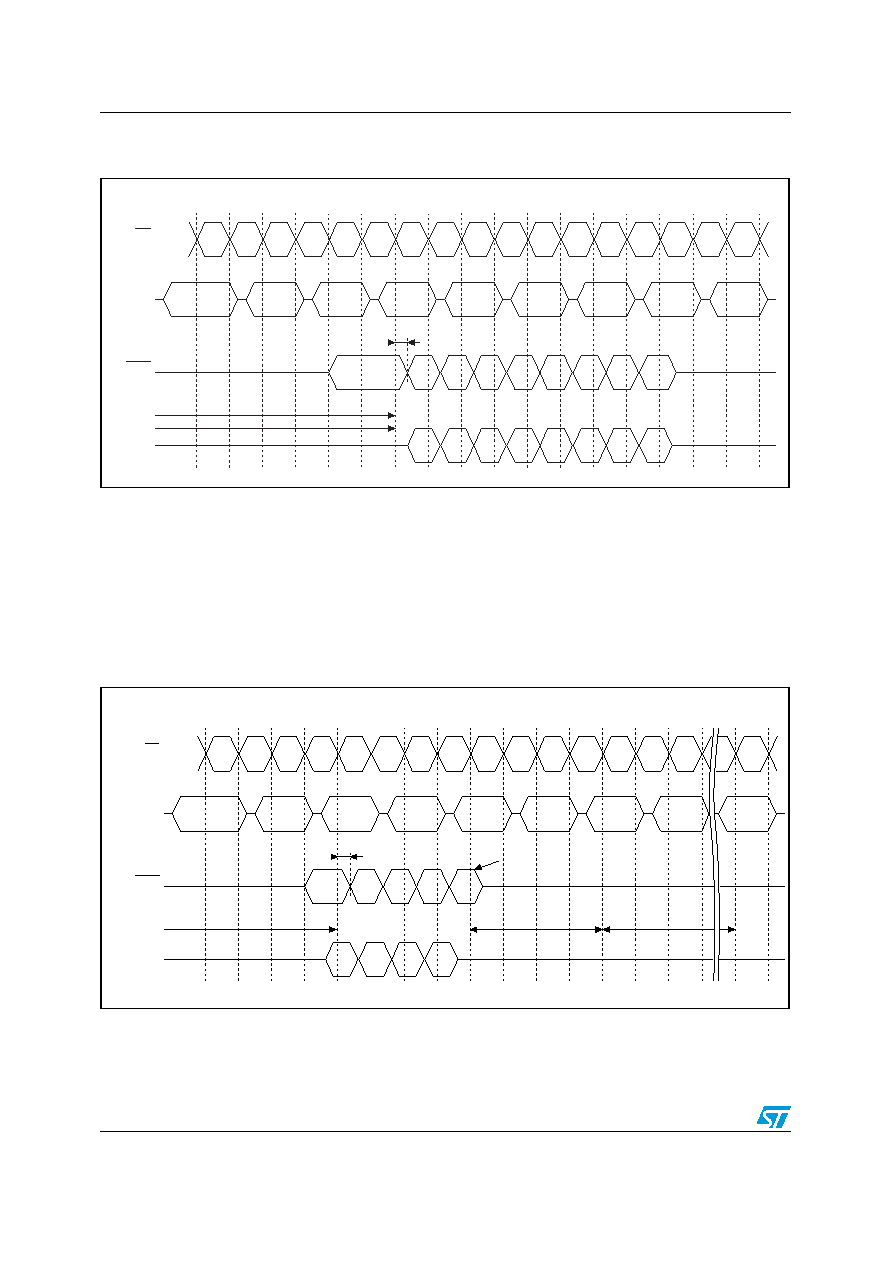

22 / 48 page ![]() DDR2 SDRAM controller interface description STLS2F01 22/48 Figure 7. DDR2 SDRAM read protocol CAS latency = 3, read latency = 3, burst length = 8 4.3 DDR2 SDRAM write protocol As showed in Figure 8 DDR2 SDRAM write protocol, the command (CMD) includes RAS_n, CAS_n and WE_n. When a write request happens, RAS_n=1, CAS_n=0,and WE_n=0. Unlike a read transaction, DQM is used to identify the write mask. In other words, the number of written bytes is needed. DQM is synchronous with DQS. Figure 8. DDR2 SDRAM write protocol CAS latency = 3, write latency = read latency = 2, burst length = 4 CMD READ A NOP NOP NOP NOP NOP NOP NOP NOP ≤ tDQSCK CL=3 RL=3 DOUTA1 DOUTA1 DOUTA2 DOUTA3 DOUTA4 DOUTA5 DOUTA6 DOUTA7 T0 T1 T2 T3 T4 T5 T6 T7 T8 CK/CK DQS/DQS DQS CMD WRITE A NOP NOP NOP NOP NOP Precharge NOP Bank A Activate ≤ tDQS6 WL = RL - 1 = 2 DINA0 DINA1 DINA2 DINA3 T0 T1 T2 T3 T4 T5 T6 T7 Tn CK/CK DQS/DQS DQS ≥ WR ≥ tRP Completion of the Burst Write |
|
