Package information
STLS2F01
46/48
9
Package information
In order to meet environmental requirements, ST offers these devices in ECOPACK®
packages. These packages have a Lead-free second level interconnect. The category of
second Level Interconnect is marked on the package and on the inner box label, in
compliance with JEDEC Standard JESD97. The maximum ratings related to soldering
conditions are also marked on the inner box label.
ECOPACK is an ST trademark. ECOPACK specifications are available at: www.st.com.

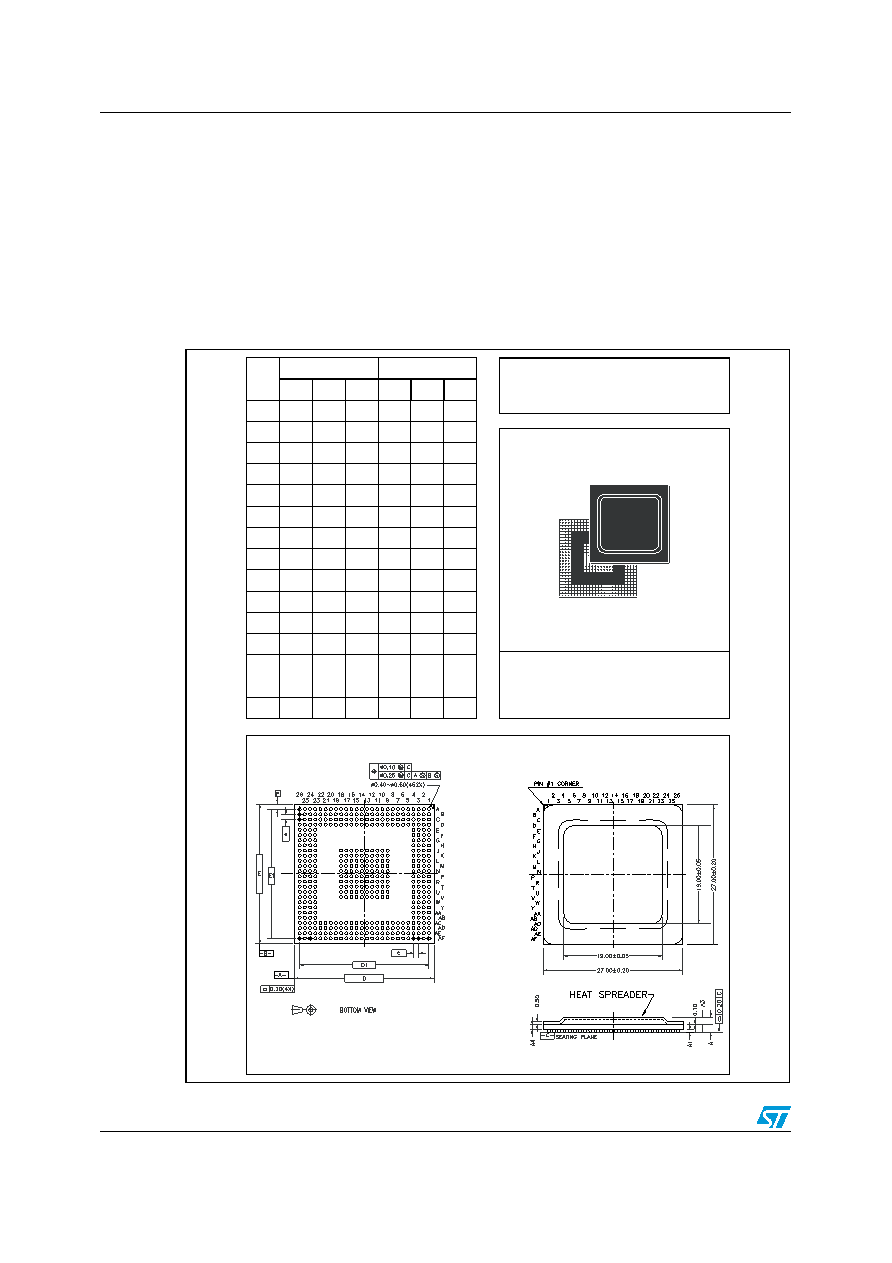

Figure 14.
HFCBGA452 mechanical data & package dimensions
OUTLINE AND
MECHANICAL DATA
DIM.
mm
inch
MIN.
TYP.
MAX.
MIN.
TYP.
MAX.
A
3.150
0.1240
A1
0.250
0.0098
A3
1.300
0.0512
A4
1.000
0.0394
b
0.450
0.500
0.550 0.0177 0.0197 0.0217
D
26.800 27.000 27.200 1.0551 1.0630 1.0709
D1
25.000
0.9843
E
26.800 27.000 27.200 1.0551 1.0630 1.0709
E1
25.000
0.9843
e
1.000
0.0394
F
1.000
0.0394
aaa
0.200
0.0079
ddd
0.200
0.0079
eee
0.250
0.0098
fff
0.100
0.0039
HFCBGA452 (27x27x2.9mm)
Heat Spreader Flip Chip Ball Grid Array
8061758 A
