IO bus interface description
STLS2F02
20/49

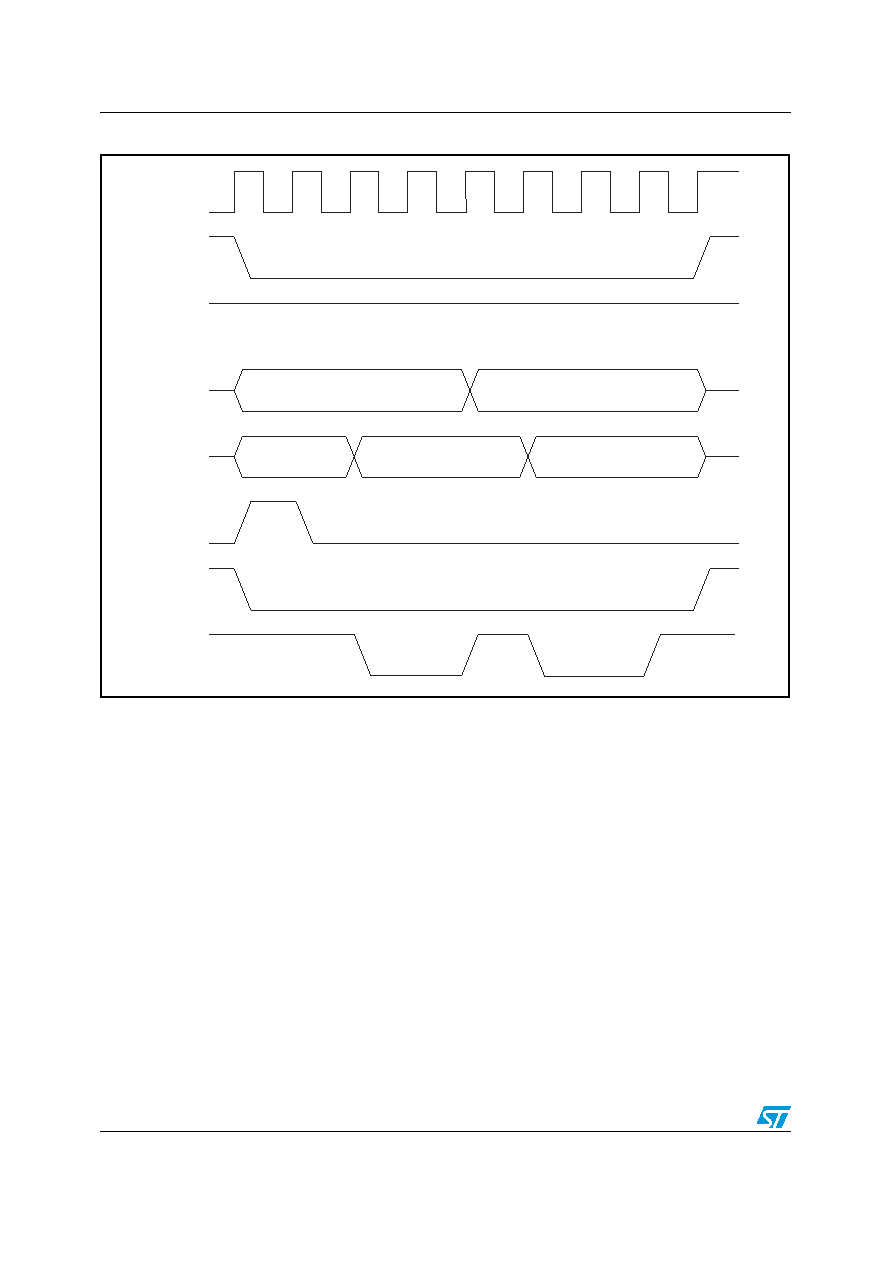

Figure 6.
Local bus write timing
3.6
Interrupt handling
An interrupt controller is built into the STLS2F02 processor to handle internal and external
interrupt. The 4 most significant bits of the interrupt INTn[5:0] in L2E are still used as
interrupts in the STLS2F02, while the other two bits are used for new interrupts, such as
PCI_IRQ and GPIO.
Interrupt between processors is handled as follows:
1.
The interrupt initiator writes the dedicated interrupt register in the chipset.
2.
Upon receiving the request for interrupt transmission, the chipset requests the target
processor for an interrupt.
3.
The processor handles the request in the same way as the previous L2E.
lioden
liodir
lioadlock
liocs
pciclk
lioaddr
lioad
liowr
addr[7:0]
addr[7:0]+1
addr[23:8]data_0
data_1
