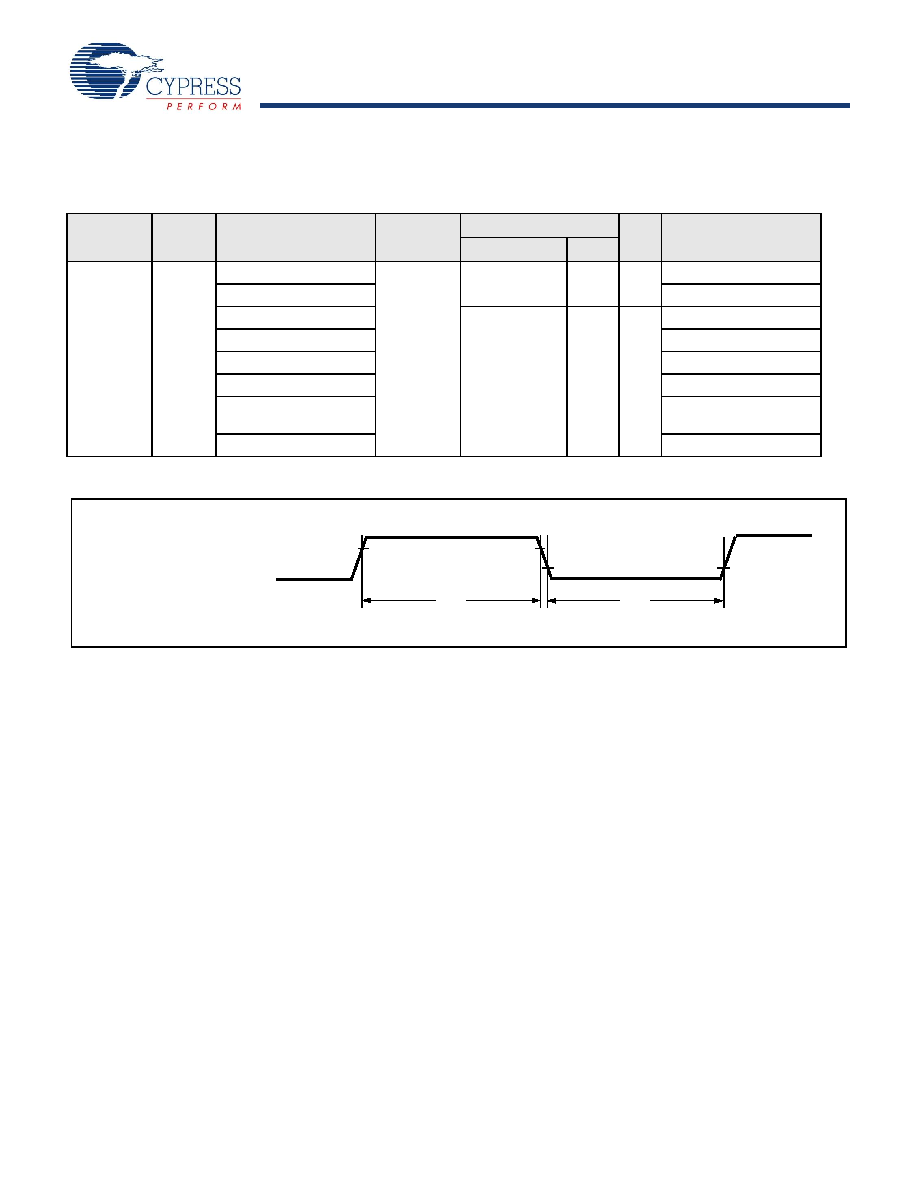

MB96340 Series
Document Number: 002-04579 Rev. *A
Page 73 of 109
14.4.5 External Input timing
Note : Relocated Resource Inputs have same characteristics
14.4.6 External Bus timing
Note: The values given below are for an I/O driving strength IOdrive = 5mA. If IOdrive is 2mA, all the maximum output timing
described in the different tables must then be increased by 10ns.
(TA = -40°C to 125°C, VCC = AVCC = 3.0V to 5.5V, VSS = AVSS = 0V)
Parameter
Symbol
Pin
Condition
Value
Unit Used Pin input function
Min
Max
Input pulse
width
tINH
tINL
INTn(_R)
-
200
-
ns
External Interrupt
NMI(_R)
NMI
Pnn_m
2*tCLKP1 + 200
(tCLKP1=1/fCLKP1)
-ns
General Purpose IO
TINn(_R)
Reload Timer
TTGn(_R)
PPG Trigger input
ADTG(_R)
AD Converter Trigger
FRCKn(_R)
Free Running Timer external
clock
INn(_R)
Input Capture
VIL
VIH
tINH
VIL
VIH
tINL
External Pin input
