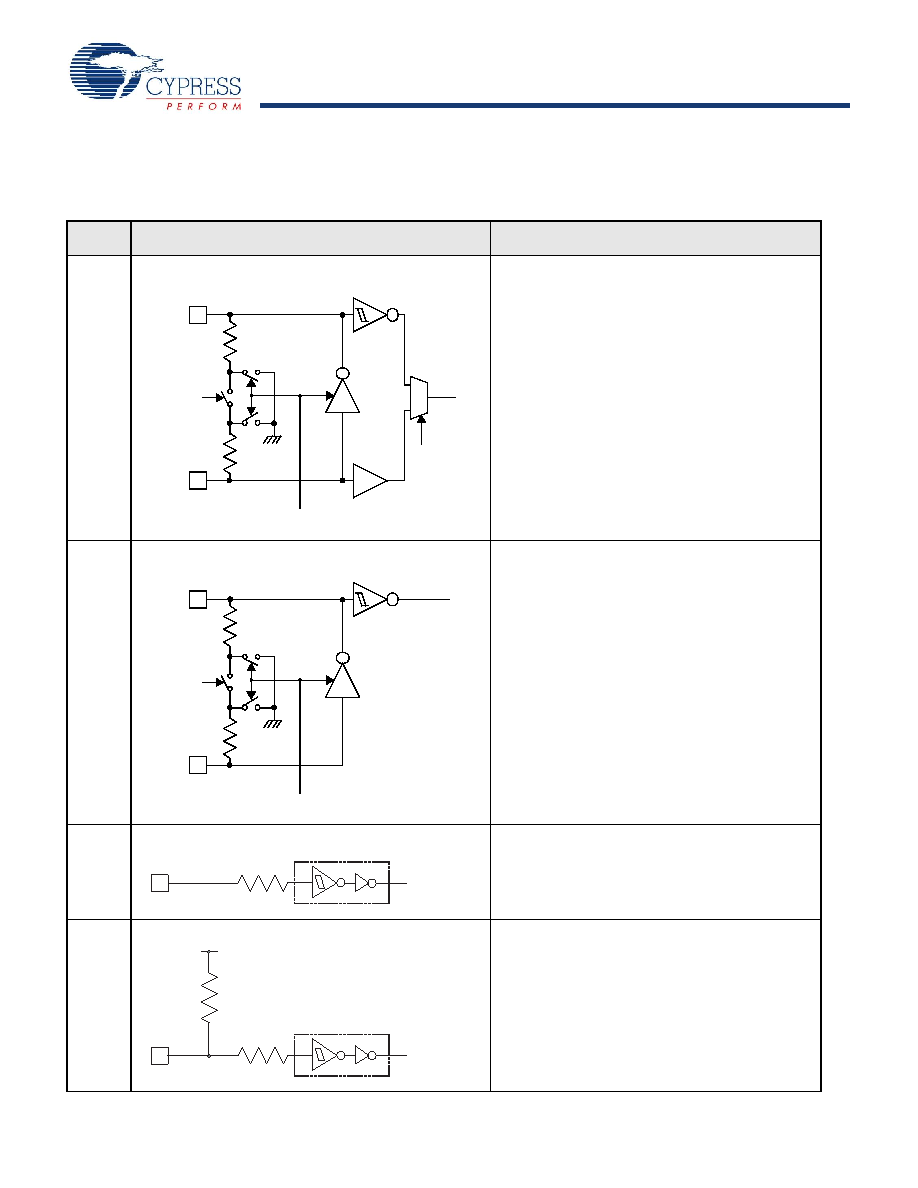

14 / 109 page ![]() MB96340 Series Document Number: 002-04579 Rev. *A Page 14 of 109 6. I/O Circuit Type Type Circuit Remarks A High-speed oscillation circuit: ■ Programmable between oscillation mode (external crystal or resonator connected to X0/X1 pins) and Fast external Clock Input (FCI) mode (external clock connected to X0 pin) ■ Programmable feedback resistor = approx. 2 * 0.5 M. Feedback resistor is grounded in the center when the oscillator is disabled or in FCI mode B Low-speed oscillation circuit: ■ Programmable feedback resistor = approx. 2 * 5 M. Feedback resistor is grounded in the center when the oscillator is disabled C ■ Mask ROM and EVA device:CMOS Hysteresis input pin ■ Flash device:CMOS input pin E ■ CMOS Hysteresis input pin ■ Pull-up resistor value: approx. 50 k X1 X0 R R MRFBE Xout FCI 0 1 FCI or osc disable X1A X0A R R SRFBE Xout osc disable R Hysteresis inputs R Pull-up Resistor Hysteresis inputs |
|
