Data Sheet

ADL5569

Rev. C | Page 7 of 23

PIN CONFIGURATION AND FUNCTION DESCRIPTIONS

VIN

VIP

GND

VIP2

VIN2

VON2

10 VOP2

11 GND

12 VOP

13 VON

ADL5569

TOP VIEW

(Not to Scale)

NOTES

1. EXPOSED PAD. THE EXPOSED PAD IS INTERNALLY

CONNECTED TO GND AND MUST BE SOLDERED TO

A LOW IMPEDANCE GROUND PLANE.

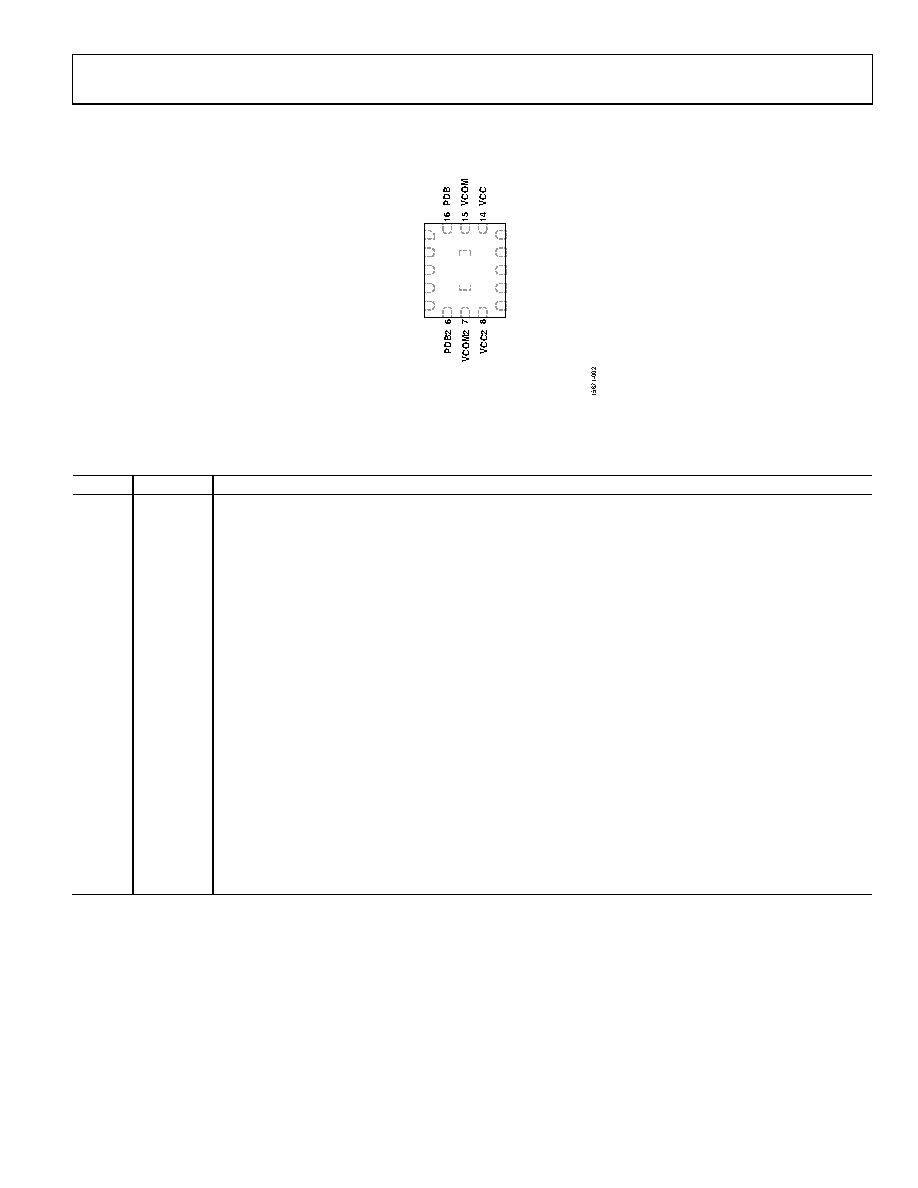

Figure 2. Pin Configuration

Table 4. Pin Function Descriptions

Pin No.

Mnemonic

Description

VIN

Negative Side of Balanced Differential Inputs for Amplifier 1. This pin is biased to the VCC voltage (VVCC)/2, and is

typically ac-coupled.

VIP

Positive Side of Balanced Differential Inputs for Amplifier 1. This pin is biased to VVCC/2, and is typically ac-coupled.

3, 11

GND

Ground. Ground reference for the entire chip. These pins must be soldered to a low impedance ground plane.

VIP2

Positive Side of Balanced Differential Inputs for Amplifier 2. This pin is biased to the VCC2 voltage (VVCC2)/2 and is

typically ac-coupled.

VIN2

Negative Side of Balanced Differential Inputs for Amplifier 2. This pin is biased to VVCC2/2 and is typically ac-coupled.

PDB2

Power-Down Control (Active Low) for Amplifier 2. This pin is internally pulled up to approximately 2.8 V. A logic

high on this pin (2.1 V < PDB2 voltage (VPDB2) < 3.3 V) enables the device.

VCOM2

Common-Mode Voltage Input for Amplifier 2. A voltage applied to this pin sets the common-mode voltage of the

inputs and outputs of the amplifier. If left open, the VCOM2 voltage (VVCOM2) = VCC2/2. Decouple this pin to ground

with a 0.1 µF capacitor.

VCC2

Positive Supply for Amplifier 2.

VON2

Negative Side of Balanced Differential Outputs for Amplifier 2. This pin is biased to VVCOM2 and is typically ac-coupled.

VOP2

Positive Side of Balanced Differential Outputs for Amplifier 2. This pin is biased to VVCOM2 and is typically ac-coupled.

VOP

Positive Side of Balanced Differential Outputs for Amplifier 1. This pin is biased to VVCOM and is typically ac-coupled.

VON

Negative Side of Balanced Differential Outputs for Amplifier 1. This pin is biased to VVCOM and is typically ac-coupled.

VCC

Positive Supply for the Amplifier 1.

VCOM

Common-Mode Voltage Input for Amplifier 1. A voltage applied to this pin sets the common-mode voltage of the

inputs and outputs of the amplifier. If left open, VVCOM = VVCC/2. Decouple this pin to ground with a 0.1 µF capacitor.

PDB

Power-Down Control (Active Low) for Amplifier 1. This pin is internally pulled up to approximately 2.8 V. A logic

high on this pin (2.1 V < PDB voltage (VPDB) < 3.3 V) enables the device.

EPAD

Exposed Pad. The exposed pad is internally connected to GND and must be soldered to a low impedance ground plane.
