ADL5569
Data Sheet
Rev. C | Page 10 of 23
–10
–100
–90
–80
–70
–60
–50
–40
–30
–20
0
6
FREQUENCY (GHz)
1
2
3
4
5

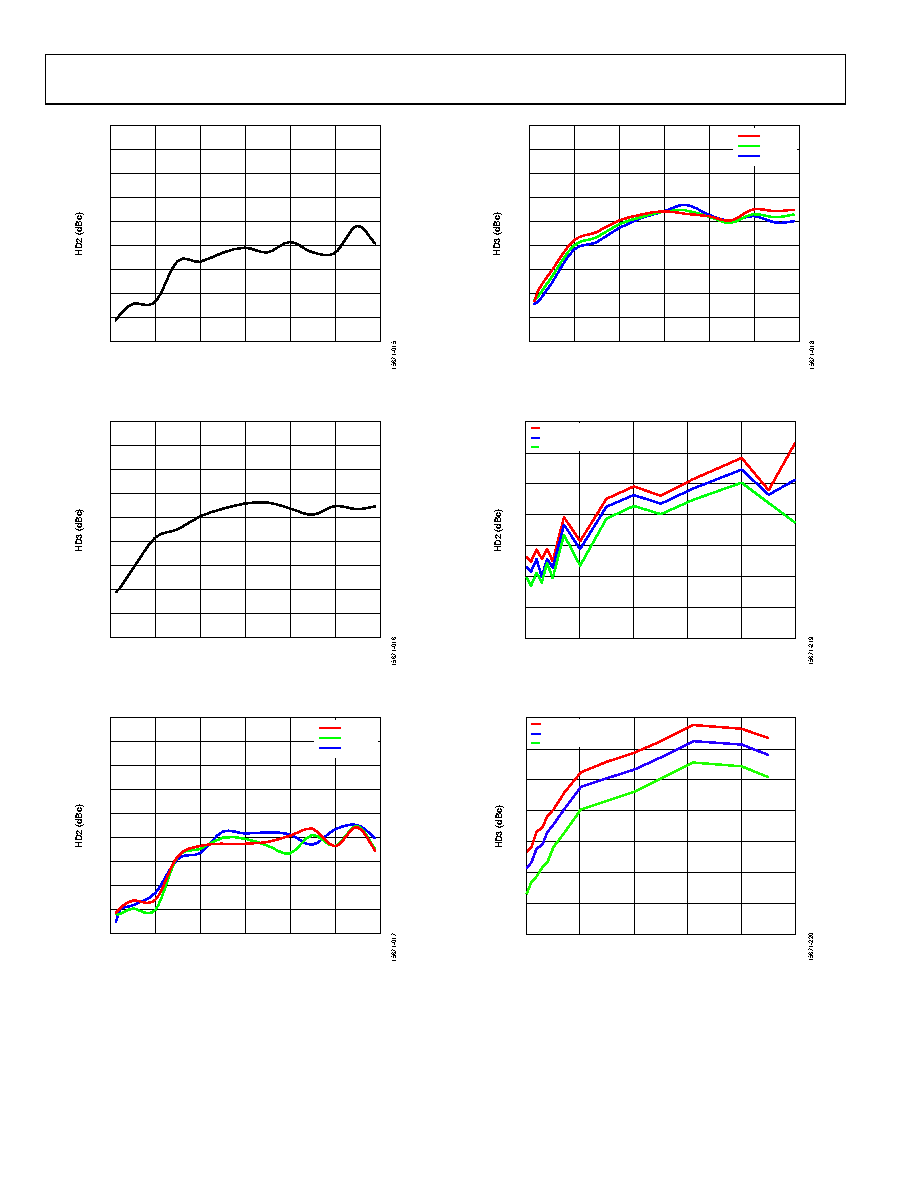

Figure 15. Second Harmonic Distortion (HD2) vs. Frequency
–10
–100
–90
–80
–70
–60
–50
–40
–30
–20
0
6
FREQUENCY (GHz)
1
2
3
4
5
Figure 16. Third Harmonic Distortion (HD3) vs. Frequency
–10
–100
–90
–80
–70
–60
–50
–40
–30
–20
0
6
FREQUENCY (GHz)
1
2
3
4
5
–40°C
+25°C
+85°C
Figure 17. HD2 vs. Frequency over Temperature
–10
–100
–90
–80
–70
–60
–50
–40
–30
–20
0
6
FREQUENCY (GHz)
1
2
3
4
5
–40°C
+25°C
+85°C
Figure 18. HD3 vs. Frequency over Temperature
–110
–100
–90
–80
–70
–60
–50
–40
0
1
2
3
4
5
FREQUENCY (GHz)
HD2 AT 2V p-p
HD2 AT 1.5V p-p
HD2 AT 1V p-p
Figure 19. HD2 vs. Frequency for Various Output Voltages Swings
–110
–100
–90
–80
–70
–60
–50
–40
0
1
2
3
4
5
FREQUENCY (GHz)
HD3 AT 2V p-p
HD3 AT 1.5V p-p
HD3 AT 1V p-p
Figure 20. HD3 vs. Frequency for Various Voltages Swings
