P9222-R/RN Datasheet
© 2019-2022 Renesas Electronics Corporation
16
May 5, 2022
4. Typical Performance Characteristics
The following performance characteristics were taken using a P9235-RB-EVK, with WPC A11a coil and P9222-R/RN EVK with
MQQRR303008S8R2 coil with default configuration in at TA = 25°C unless otherwise noted.

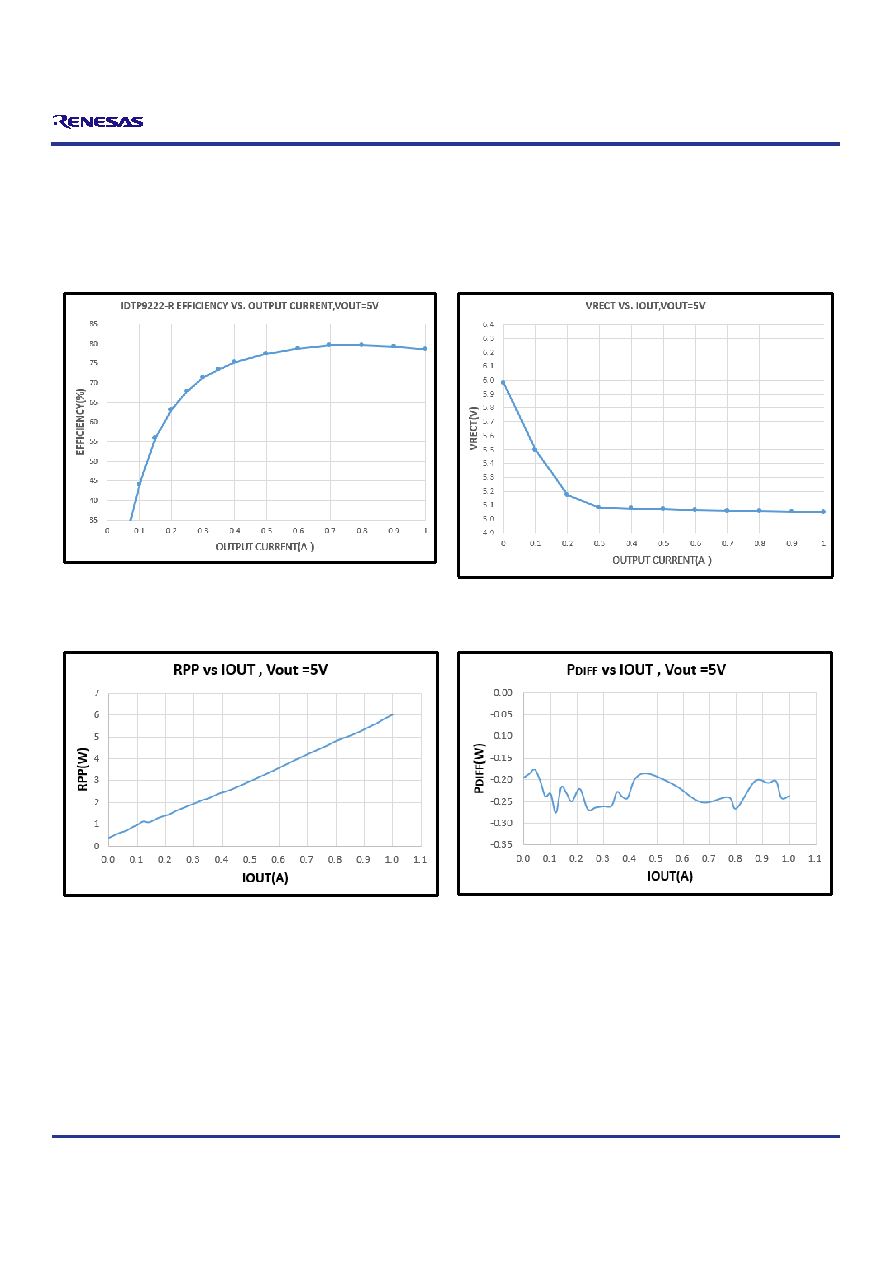

Figure 5. System Efficiency vs Output Current
Figure 6. VRECT vs IOUT, Vout = 5.0V
Figure 7. Reported Received Power (RPP) vs
Iout on NOK9 Transmitter
Figure 8. PDIFF (PTX-PRX) vs Iout on NOK9
Transmitter
