P9222-R/RN Datasheet

May 5, 2022

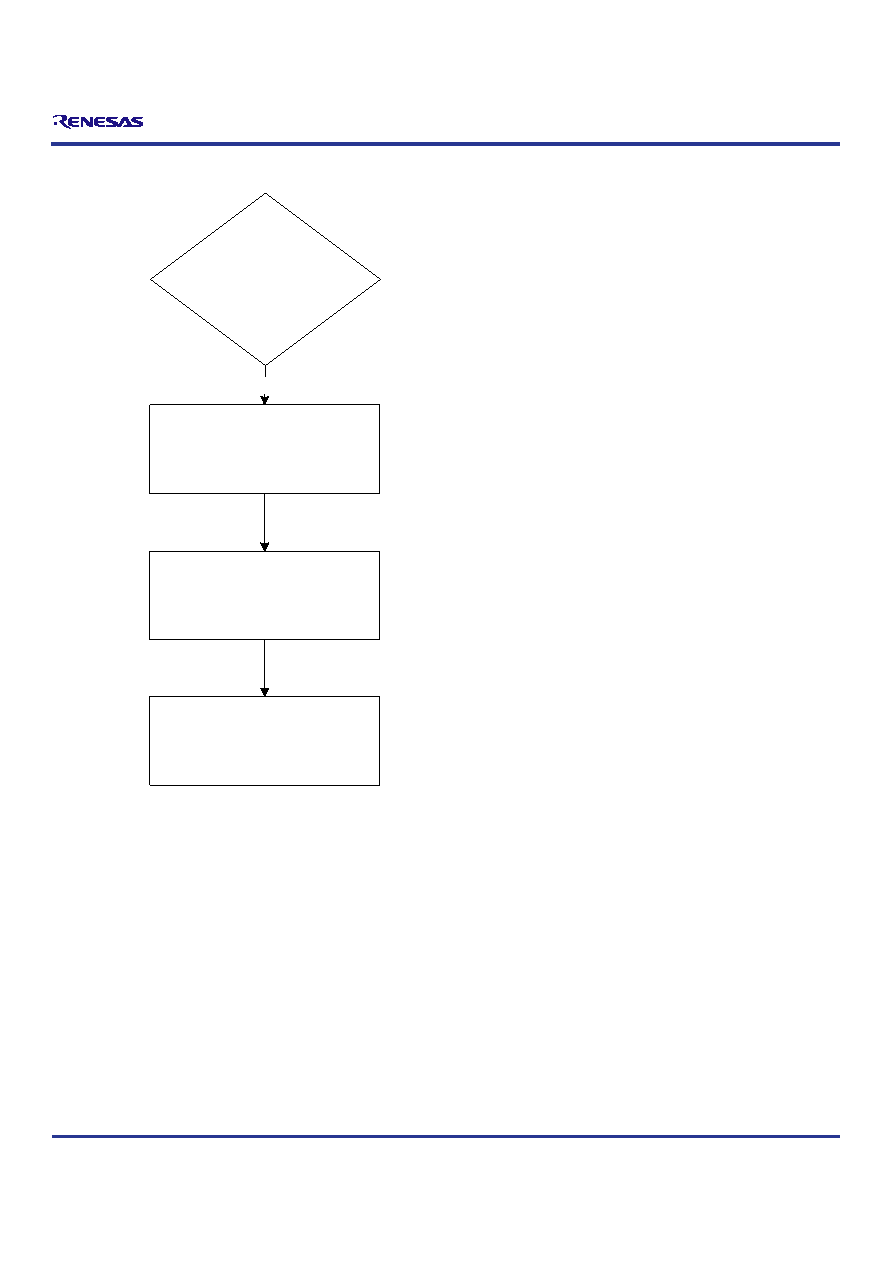

Figure 20. State Diagram for Reading User Data Received from the P9235-RB

If the receiver is sending 1 byte, 2 bytes, and 3 bytes in the

outgoing register, then we would set the header register to 0x18,

0x28, and 0x38 respectively.

Did the INT pin transition

from HIGH to LOW and bit 5 of

set to 1?

Yes

Read the incoming Header register

(0x57) and User Data

registers (0x58 to 0x5F)

Set bit 5 of register 0x3A to 1 to clear

the received interrupt and data

received flag

Set bit 5 of register 0x4E to 1

to clear the interrupt events and reset

the INT pin
