STLED524 데이터시트(PDF) 17 Page - STMicroelectronics

부품명 STLED524
상세설명  Intelligent matrix LED display driver
PDF  72 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
제조업체  STMICROELECTRONICS [STMicroelectronics]
홈페이지  http://www.st.com
Logo STMICROELECTRONICS - STMicroelectronics

STLED524 데이터시트(HTML) 17 Page - STMicroelectronics

Back Button STLED524 Datasheet HTML 13Page - STMicroelectronics STLED524 Datasheet HTML 14Page - STMicroelectronics STLED524 Datasheet HTML 15Page - STMicroelectronics STLED524 Datasheet HTML 16Page - STMicroelectronics STLED524 Datasheet HTML 17Page - STMicroelectronics STLED524 Datasheet HTML 18Page - STMicroelectronics STLED524 Datasheet HTML 19Page - STMicroelectronics STLED524 Datasheet HTML 20Page - STMicroelectronics STLED524 Datasheet HTML 21Page - STMicroelectronics Next Button
Zoom Inzoom in Zoom Outzoom out
 17 / 72 page
background image
DocID026217 Rev 1
17/72
STLED524
Detailed description

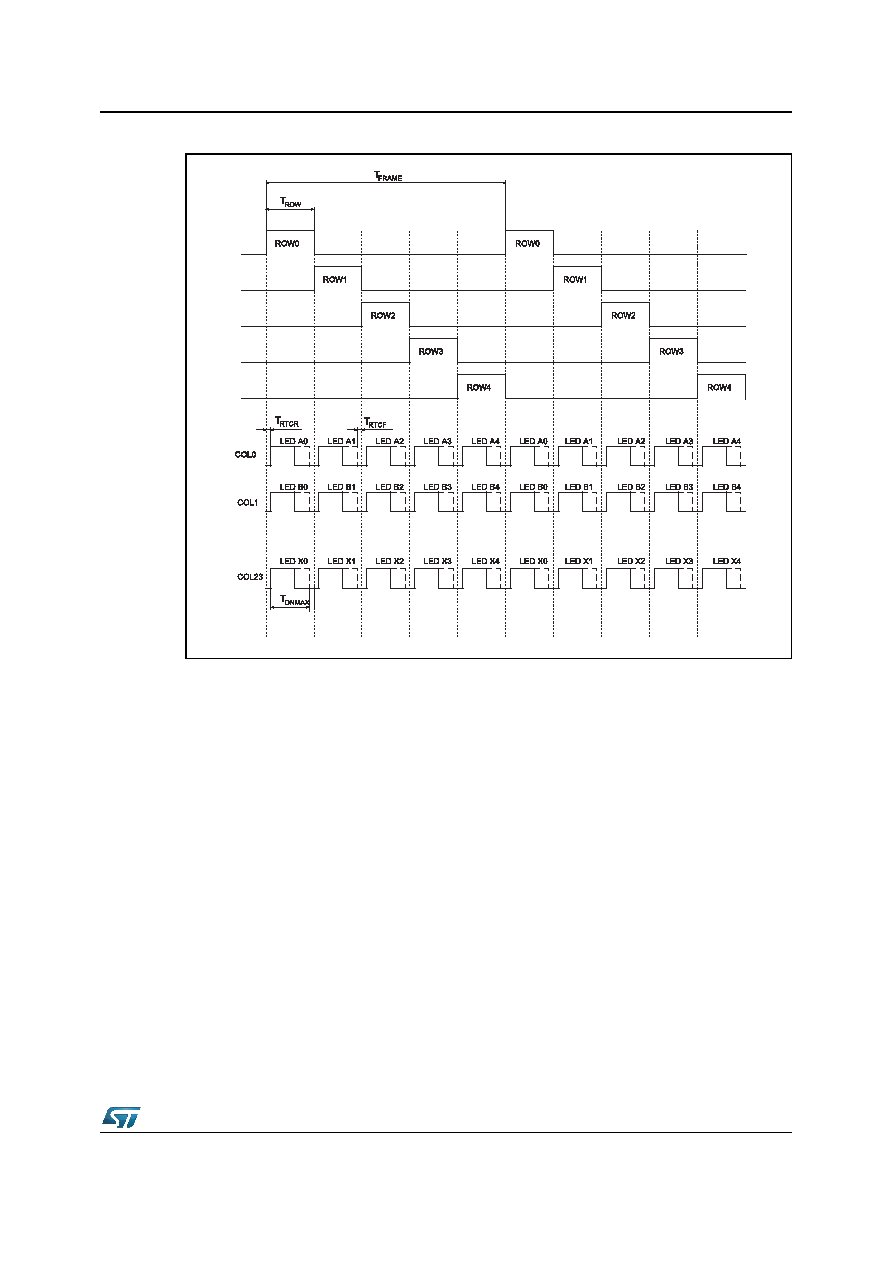

Figure 4. LED matrix timing
TRTCR and TRTCF are adjustable due to the blanking time register. If a blanking time is set
longer than 2 TCLK, maximum PWM duty cycle is limited according to Table 10.
GIPG2103140938LM
