Detailed description
STLED524
36/72
DocID026217 Rev 1
P1 = pattern 1, P2 = pattern 2, B = blank display, Brc = blank rows/columns

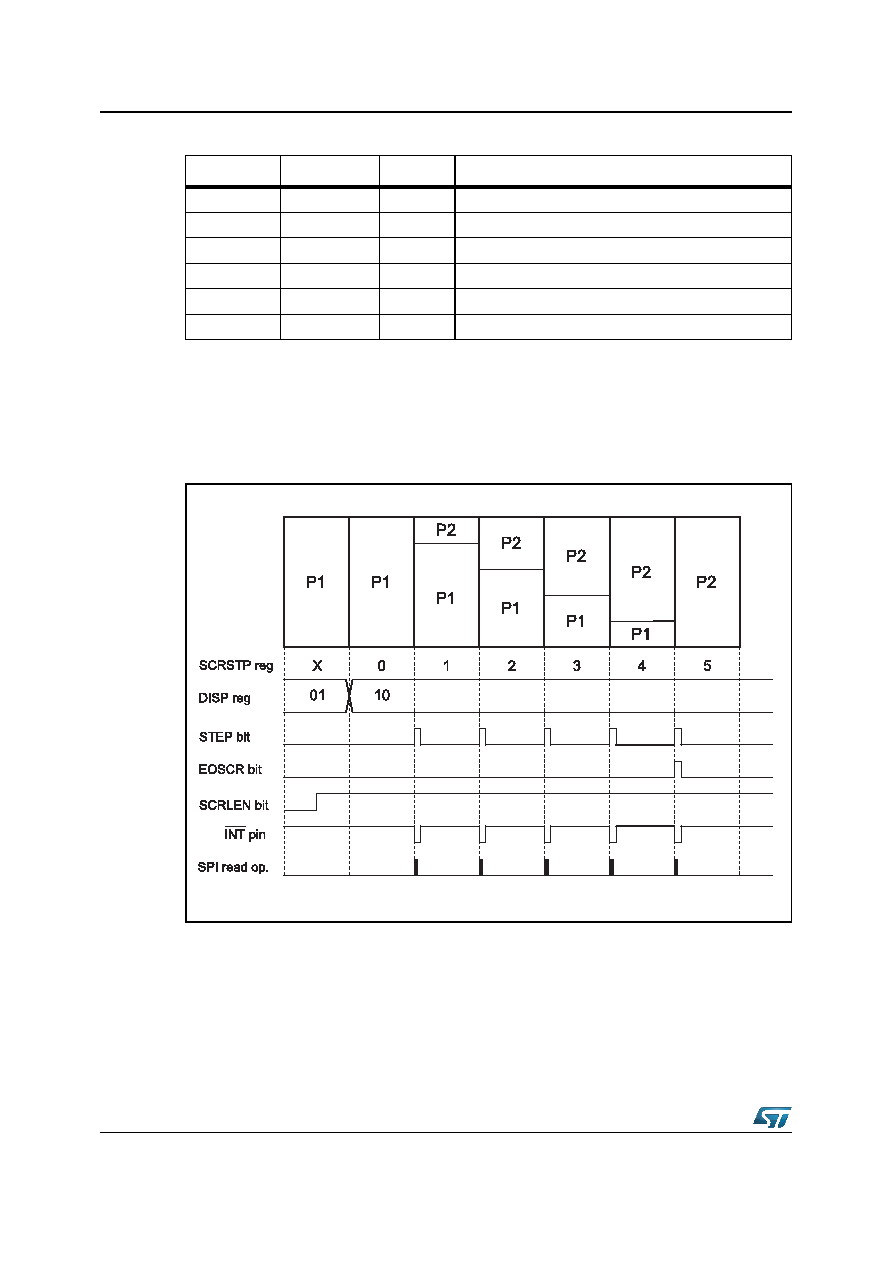

Figure 9 shows a scroll operation in vertical direction (5 steps). No blank column or row is
inserted and wait time is disabled. As for horizontal direction, the only difference is the
number of scroll steps (24 instead of 5). EOSCR bit is set to 1 in the 24th step.
Figure 9. Basic scroll operation
Figure 10 shows a scroll operation with blank row/column insertion enabled. S is the
number of standard scroll steps (with blank row/column insertion disabled). S = 24 for
horizontal direction and 5 in case of vertical direction, n is the number of blank
rows/columns to be inserted.
01
00
1
P1
→ Brc →B
01
01
1
P1
→ Brc →P1 (rotation)
01
10
1
P1
→ Brc →P2
10
00
1
P2
→ Brc →B
10
01
1
P2
→ Brc →P1
10
10
1
P2
→ Brc →P2 (rotation)
Table 46. List of all scroll operations (continued)
DISP (act)
DISP (new)
BRCEN
GIPG210314953LM
