DocID026217 Rev 1
41/72
STLED524
Detailed description

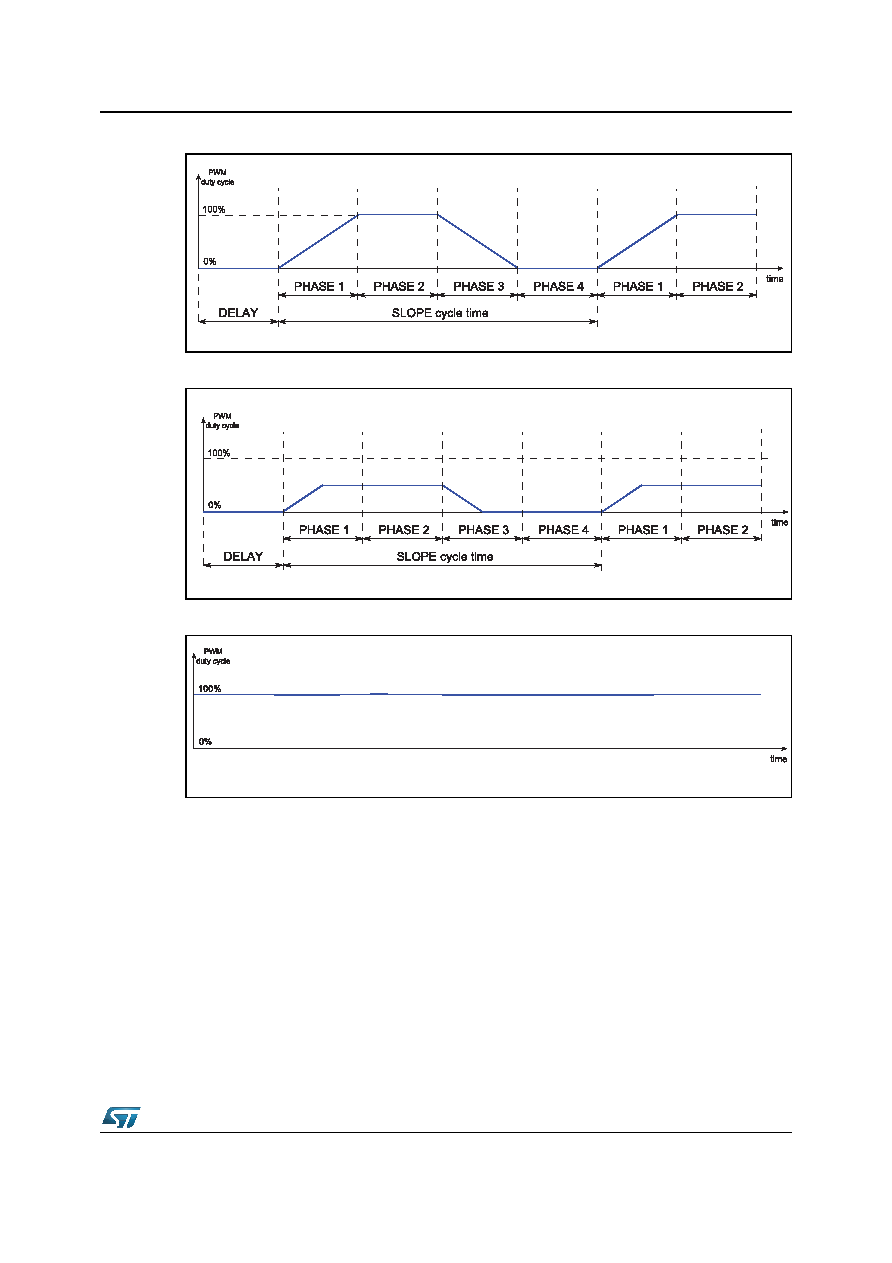

Figure 16. Light output in case of disabled PWM and enabled slope
Figure 17. Light output in case of enabled PWM and enabled slope
Figure 18. Light output in case of enabled scroll
4.9
SPI
The STLED524 is fully compatible with SPI protocol. All commands, addresses and input
data bytes are shifted inside the device, the most significant bit first. The first serial data
input (MOSI) is sampled on the first rising edge of the serial clock (SCK) after slave select
(SS) goes low. Figure 19 shows the writing of a single byte into the device.
GIPG2103141024LM
GIPG2103141026LM
GIPG2103141030LM
