EM351-RTR 데이터시트(PDF) 5 Page - List of Unclassifed Manufacturers

부품명 EM351-RTR
상세설명  High-Performance, Integrated ZigBee/802.15.4 System-on-Chip
PDF  240 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
제조업체  ETC2 [List of Unclassifed Manufacturers]
홈페이지
Logo ETC2 - List of Unclassifed Manufacturers

EM351-RTR 데이터시트(HTML) 5 Page - List of Unclassifed Manufacturers

  EM351-RTR Datasheet HTML 1Page - List of Unclassifed Manufacturers EM351-RTR Datasheet HTML 2Page - List of Unclassifed Manufacturers EM351-RTR Datasheet HTML 3Page - List of Unclassifed Manufacturers EM351-RTR Datasheet HTML 4Page - List of Unclassifed Manufacturers EM351-RTR Datasheet HTML 5Page - List of Unclassifed Manufacturers EM351-RTR Datasheet HTML 6Page - List of Unclassifed Manufacturers EM351-RTR Datasheet HTML 7Page - List of Unclassifed Manufacturers EM351-RTR Datasheet HTML 8Page - List of Unclassifed Manufacturers EM351-RTR Datasheet HTML 9Page - List of Unclassifed Manufacturers Next Button
Zoom Inzoom in Zoom Outzoom out
 5 / 240 page
background image
EM351 / EM357
1
Pin Assignments

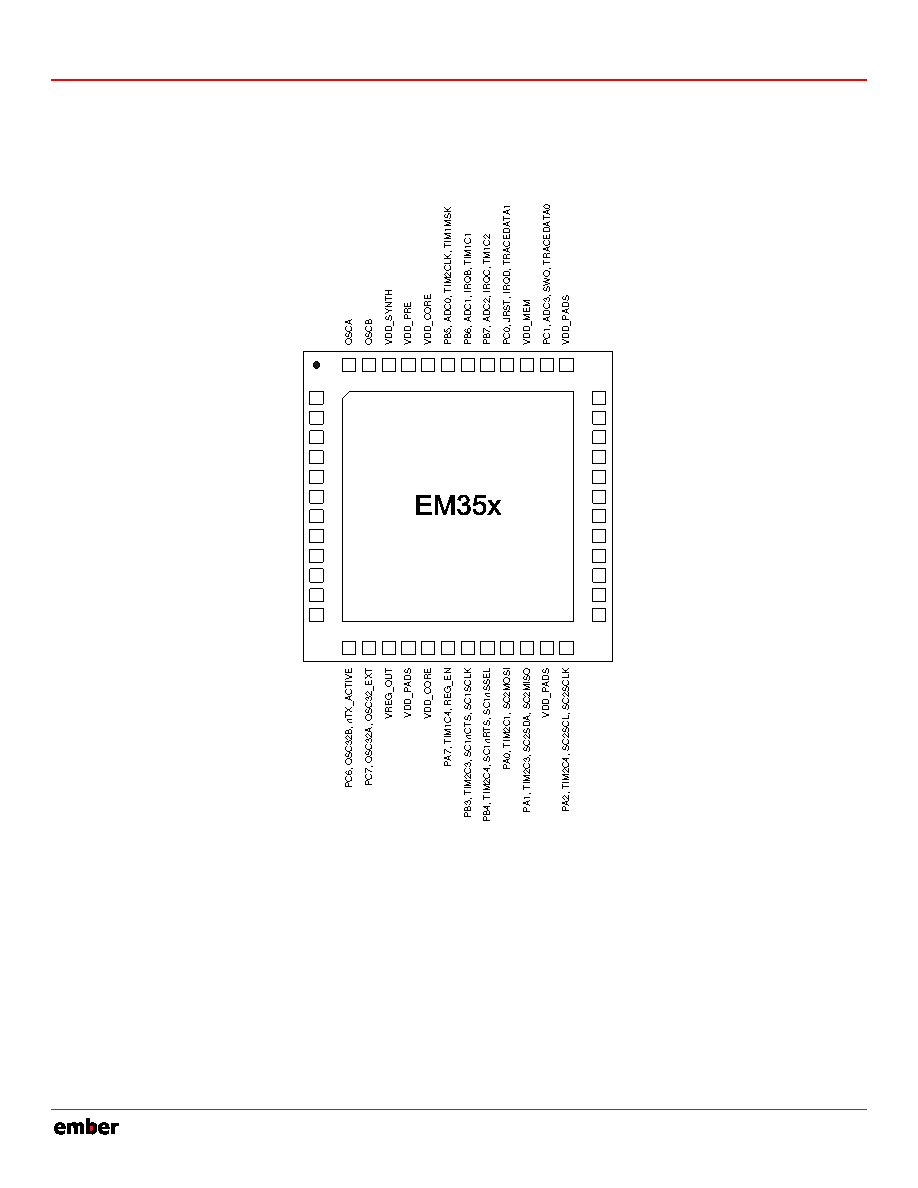

Figure 1-1. EM35x Pin Assignments
VDD_24MHZ
VDD_VCO
RF_N
RF_P
VDD_RF
RF_TX_ALT_P
RF_TX_ALT_N
VDD_IF
NC
VDD_PADSA
PC5, TX_ACTIVE
PB0, VREF, IRQA, TRACECLK, TIM1CLK, TIM2MSK
PC4, JTMS, SWDIO
PC3, JTDI
PC2, JTDO, SWO
SWCLK, JTCK
PB2, SC1MISO, SC1MOSI, SC1SCL, SC1RXD, TIM2C2
PB1, SC1MISO, SC1MOSI, SC1SDA, SC1TXD, TIM2C1
PA6, TIM1C3
VDD_PADS
PA5, ADC5, PTI_DATA, nBOOTMODE, TRACEDATA3
PA4, ADC4, PTI_EN, TRACEDATA2
PA3, SC2nSSEL, TRACECLK, TIM2C2
13
14
15
16
17
18
19
20
21
22
23
24
12
11
nRESET
10
9
8
7
6
5
4
3
2
1
25
26
27
28
29
30
31
32
33
34
35
36
48
47
46
45
44
43
42
41
40
39
38
37
49
GND
Refer to Chapter 7, GPIO for details about selecting GPIO pin functions.
1-1
120-035X-000D
Preliminary
