F3SG-R datasheet(56/164 Pages) OMRON

56 / 164 page

F3SG-RR

Standalone F3SG-RR using NPN Outputs

Auto Reset Mode, EDM enabled and NPN Outputs

The following is the example of Muting not used, External Device Monitoring enabled, Auto Reset Mode, NPN outputs and External Test in 0 V

Active (not used).

Settings

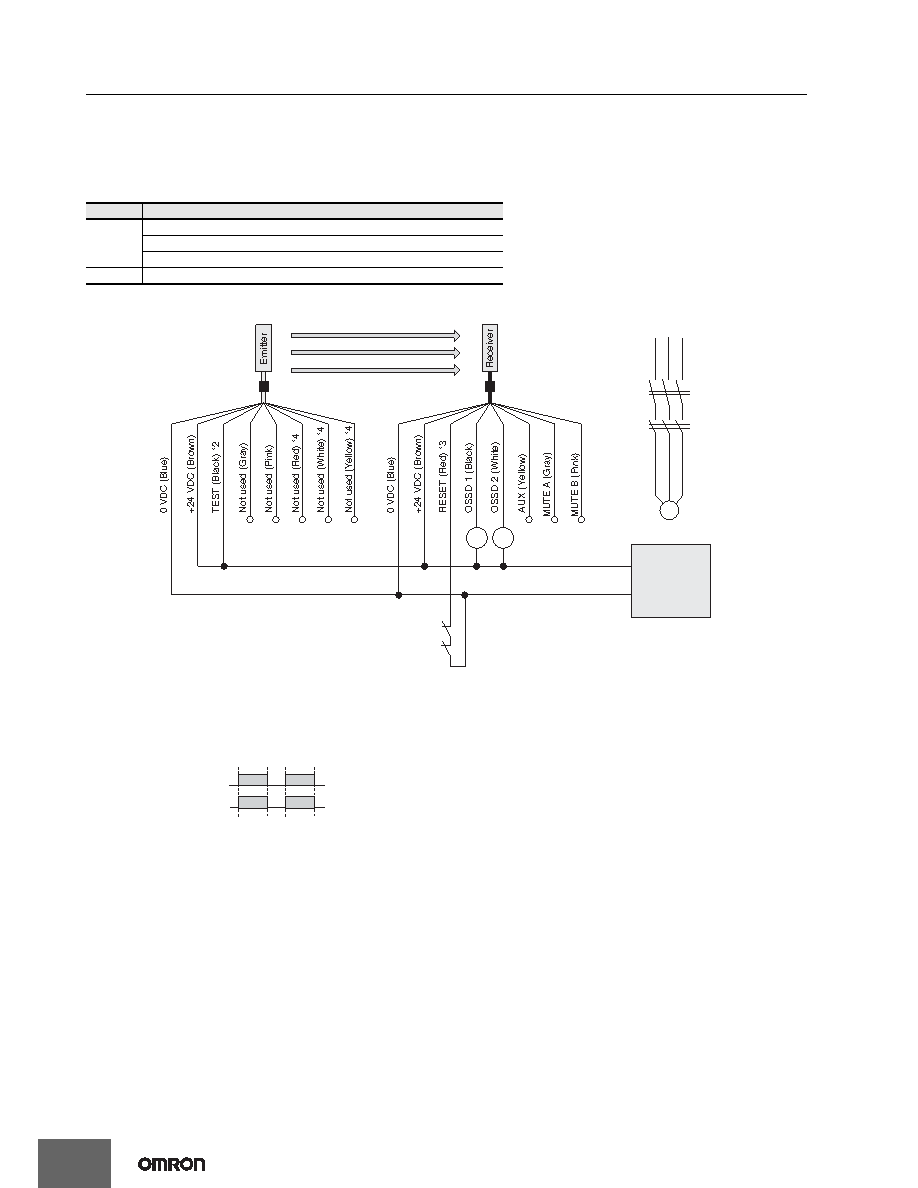

Wiring Example

Note: For the functional earth connection, refer to page 55.

Function

Receiver

EDM Enabled (factory default setting) *1

Auto Reset (factory default setting) *1

NPN *1

Emitter

External Test: 0 V Active (End Cap: White)

Unblocked

Blocked

Beam state

OSSD

KM1, KM2: Safety relay with forcibly guided contacts (G7SA)

M: Motor

F39-JD

@@A-L *5

F39-JD

@@A-D *5

KM1

KM2

KM1 KM2

KM1

KM2

+24 VDC

Power Supply

0 VDC

*1.The functions are configurable with Configuration Tool. Refer to Safety

Light Curtain Configuration Tool for Model F3SG (SD Manager 2) User’s

Manual for more information on setting the functions by the Configuration

Tool.

*2.Connect the line to 0 V via a test switch (N.O. contact) if External Test is

used.

*3.Also used as EDM input line. Connect a lockout reset switch (N.C. contact)

to this line in series with the KM1 and KM2 if Lockout Reset is used.

*4.The F39-JD

@RA-L Single-Ended Cable for Emitter (Oil-Resistant Cable)

does not have the red, white and yellow wires.

*5.For the F39-JD

@A-@ Single-Ended Cable, connect the shield line to 0 V.
