F3SG-RR
62

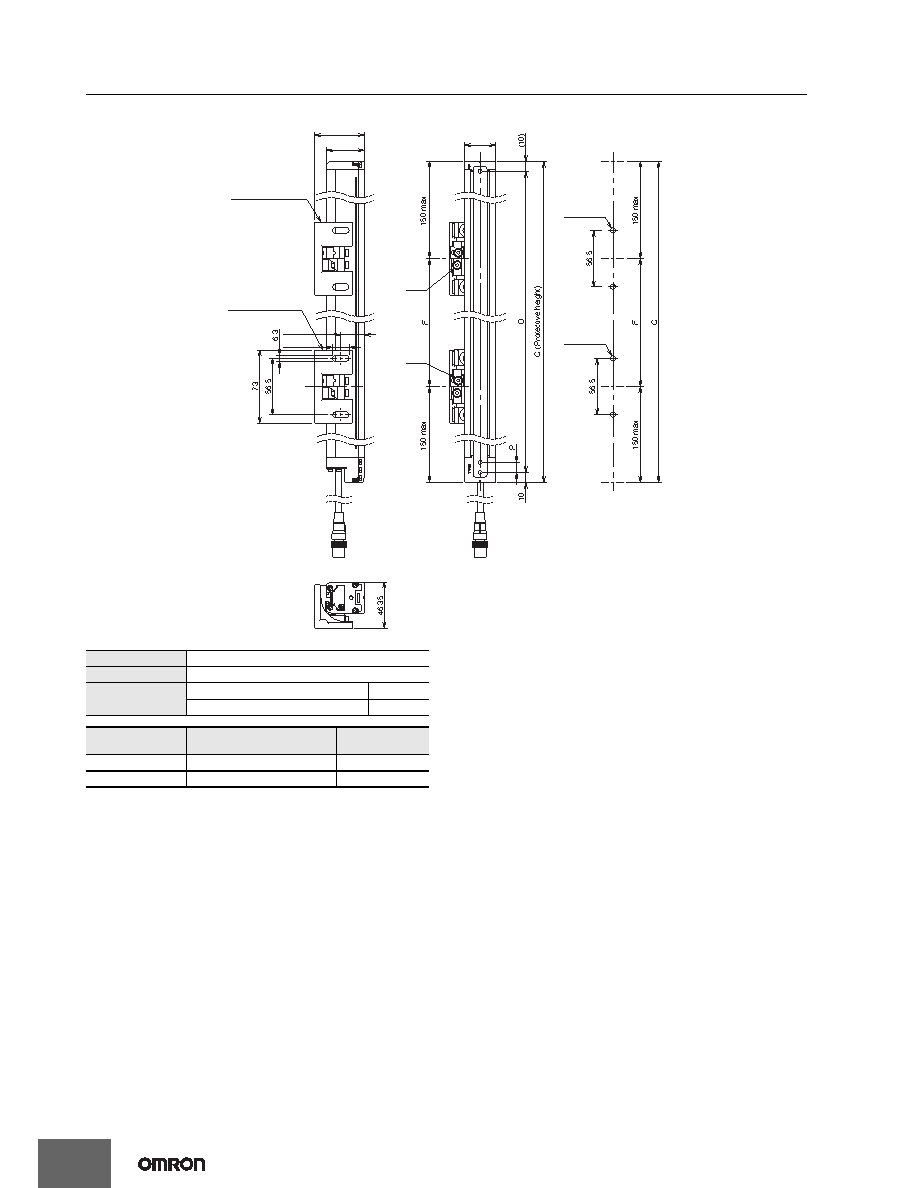

Side Mounting
*1. The number of brackets required to mount either one of emitter and receiver.
*2. Mounting an emitter or receiver with one bracket is possible for the model of protective height of 0240. In this case, locate this
bracket at half the Dimension C (or at the center of the sensor length).
Dimension C
4-digit number of the type name (Protective height)
Dimension D
C-20
Dimension P
F3SG-4RR
@@@@-14
10
F3SG-4RR
@@@@-25
20
Protective height
(C)
Number of Free-Location
Brackets *1
Dimension F
0240 to 1200
2 *2
1000 mm max.
1280 to 1920
3
1000 mm max.
31.4
2-M4
2-M4
38
50
16.3
23.5
(F39-LGRA)
(F39-LGRA)
2-M5 or M6
2-M5 or M6
Free-Location Bracket
Free-Location Bracket
<Screw: M5 or M6>
