Safety Light Curtain

F3SG-RA-01TS

Offers Both Durability and Reliability

• Rugged and compact

• All models designed for global use. PNP/NPN selection by DIP

switch

• Conforming to major international standards

• Prevents accidental changes of settings by configuration tool

(monitoring only)

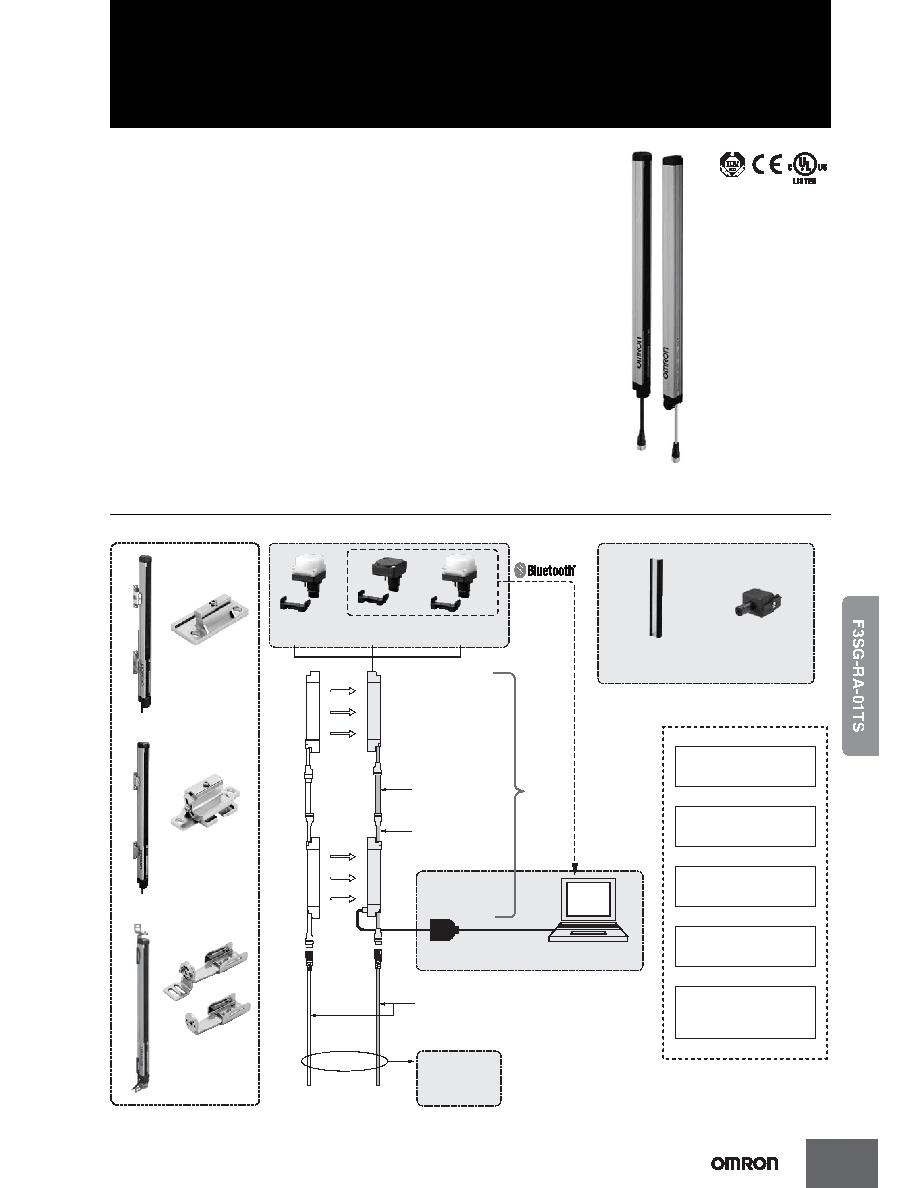

System Configuration

IF-U

F39-LGF

Standard Fixed Bracket

F39-LGA

Standard Adjustable

Bracket

F39-LGTB

F39-LGTB-1

Top/Bottom Adjustable

Bracket

F39-LP

Lamp

F39-BTLP

Lamp and Bluetooth

Communication Unit

F39-BT

Bluetooth

Communication Unit

F39-HGA

@@@@

Spatter Protection Cover

(for F3SG-RA-01TS)

F39-PTG

Laser Pointer

NX/NE1A-series

Safety Network Controller

G9SP-series

Safety Controller

G9SE/G9SA-series

Safety Relay Unit

G9SX-series

Flexible Safety Unit

G7SA/G7S-E

Relays with Forcibly

Guided Contacts

Mounting bracket

Accessory

Emitter

Receiver

Emitter

Receiver

F39-JGR2WTS

Cascading Cable

F39-JD

□B

Double-Ended Cable

Up to

three sets

F39-JD

□B

Double-Ended Cable

F39-JD

□A

Single-Ended Cable

F39-CN5

F39-JD

@@@@BA

Reduced wiring

connector system

F39-GIF

Interface Unit

Configuration Tool

SD Manager 2

Recommended safety controller *2

Accessory

Accessory *1

*1. The F3SG-RA-01TS provides only the monitoring

functionality.

*2. The recommended safety controller is required to

build a safety circuit using emergency stop

switches and door switches.
