F3SG-RA

Standalone F3SG-RA using NPN Outputs

Standard Muting Mode/Exit-Only Muting Mode using NPN Outputs

The following is the example of External Device Monitoring enabled, Auto Reset mode, NPN output and External Test in 0 V Active.

DIP Switch settings *3

: Indicates a switch position.

Configure functions with the DIP Switches before wiring.

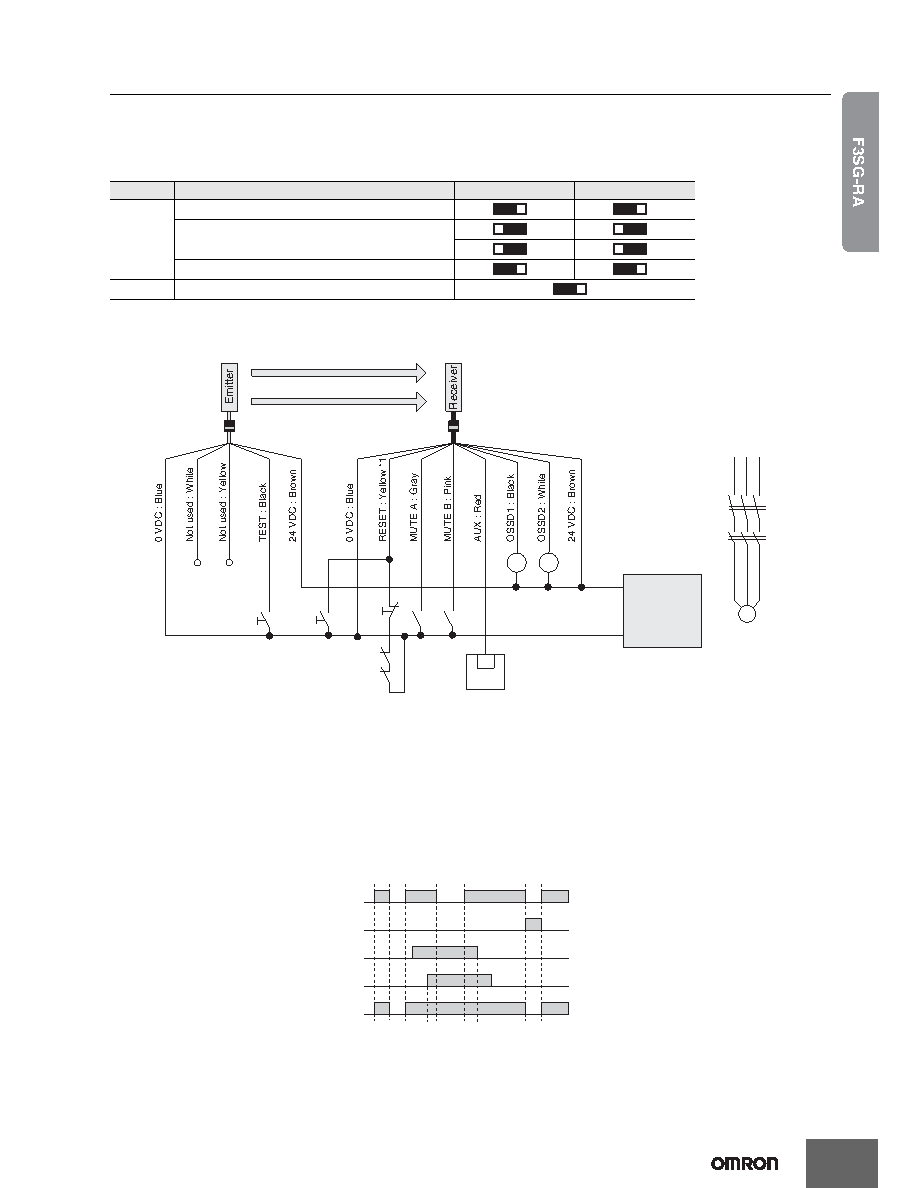

Wiring Example

Note: For the functional earth connection, refer to page 28.

Function

DIP-SW1

DIP-SW2

Receiver

EDM Enabled

Auto Reset (factory default setting)

NPN

Emitter

External Test: 0 V Active

2ON

3ON

4ON

7ON

4ON

S1: Test Switch (Connect the line to 24 V if this switch is not required)

S2: Override Cancel Switch

S3: Lockout/Interlock Reset Switch or Override Switch

S4, S5: Muting sensor

KM1, KM2: Safety relay with forcibly guided

contacts (G7SA) or magnetic contactor

M: Motor

Power Supply

+24 VDC

0 VDC

KM1

KM2

KM1

KM2

KM1

KM2

Unblocked

Blocked

MUTE A

MUTE B

OSSD

Test Switch (S1)

Beam state

PLC *4

F39-JG

@A-L

F39-JG

@A-D

*1.Also used as Override input line.

*2.Make sure to connect an override cancel switch to the Reset line

when using the override function. Otherwise the override state may

not be released by the override cancel switch, resulting in serious

injury.

*3.The functions are configurable with DIP Switch. Refer to Safety

Light Curtain F3SG-R Series User's Manual for more information on

setting the functions by the DIP Switch.

*4.When connecting to the PLC, the output mode must be changed

with the Configuration Tool according to your application.
