F3SG-RE

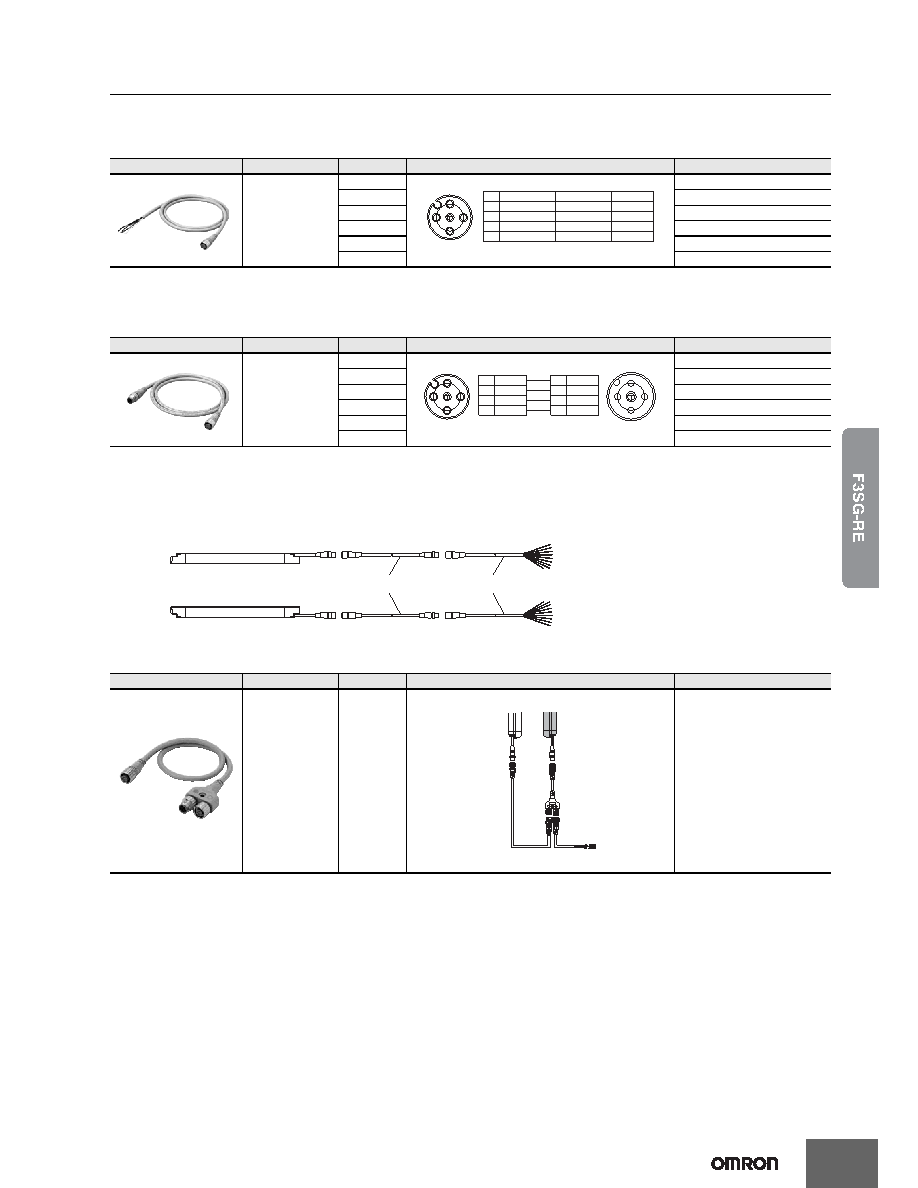

Accessories (Sold separately)

Safety light curtain connecting cable

Single-Ended Cable (Round Water-resistant Connector: Connector Connected to Cable, Socket on One Cable End)

Note: 1. One cable that can be used for both emitter and receiver is provided. Order two cables for one set of safety light curtains.

2. To extend the cable length to 20 m or more, add the XS5W-D421-

@81-F Double-Ended Cable.

Double-Ended Cable (Round Water-resistant Connector: Connectors Connected to Cable, Socket and Plug on Cable Ends)

For cable extension and simple wiring

Note: 1. One cable that can be used for both emitter and receiver is provided. Order two cables for one set of safety light curtains.

2. To extend the cable length to more than 20 m, add the XS5W-D421-

@81-F Double-Ended Cable to the XS5F-D421-@80-F Single-Ended

Cable.

To extend the cable length to more than 40 m, add several Double-Ended Cables to the Single-Ended Cable.

Example: To extend the cable length to 50 m, connect two XS5W-D421-L81-F (20 m) cables and one XS5F-D421-J80-F (10 m) cable.

Y-Joint Plug/Socket Connector for Easy type F3SG-RE

Appearance

Type

Cable length

Specifications

Model

M12 connector

(4-pin), 4 wires

1 m

XS5F-D421-C80-F

2 m

XS5F-D421-D80-F

3 m

XS5F-D421-E80-F

5 m

XS5F-D421-G80-F

10 m

XS5F-D421-J80-F

20 m

XS5F-D421-L80-F

Appearance

Type

Cable length

Specifications

Model

M12 connector

(4-pin) on both

ends

1 m

XS5W-D421-C81-F

2 m

XS5W-D421-D81-F

3 m

XS5W-D421-E81-F

5 m

XS5W-D421-G81-F

10 m

XS5W-D421-J81-F

20 m

XS5W-D421-L81-F

Appearance

Type

Cable length

Specifications

Model

M12 connectors.

Used for reduced

wiring.

0.5 m

When using the reduced wiring connector system F39-GCNY1,

the Operating Range Selection is fixed to Long Mode.

F39-GCNY1

Female

+24 VDC

Range setting

0 VDC

Not used

+24 VDC

OSSD 2

0 VDC

OSSD 1

Brown

Emitter

Recelver

Color

White

Blue

Black

Female

Male

Brown

White

Blue

Black

Brown

White

Blue

Black

Emitter

Receiver

Double-Ended Cable

XS5W-D421-

@81-F

Single-Ended Cable

XS5F-D421-

@80-F

Single-Ended Cable

XS5F-D421-

@80-F

Double-Ended Cable

XS5W-D421-

@81-F

Y-Joint Plug/

Socket Connector for Easy type

F39-GCNY1

F3SG-RE

Emitter

F3SG-RE

Receiver
