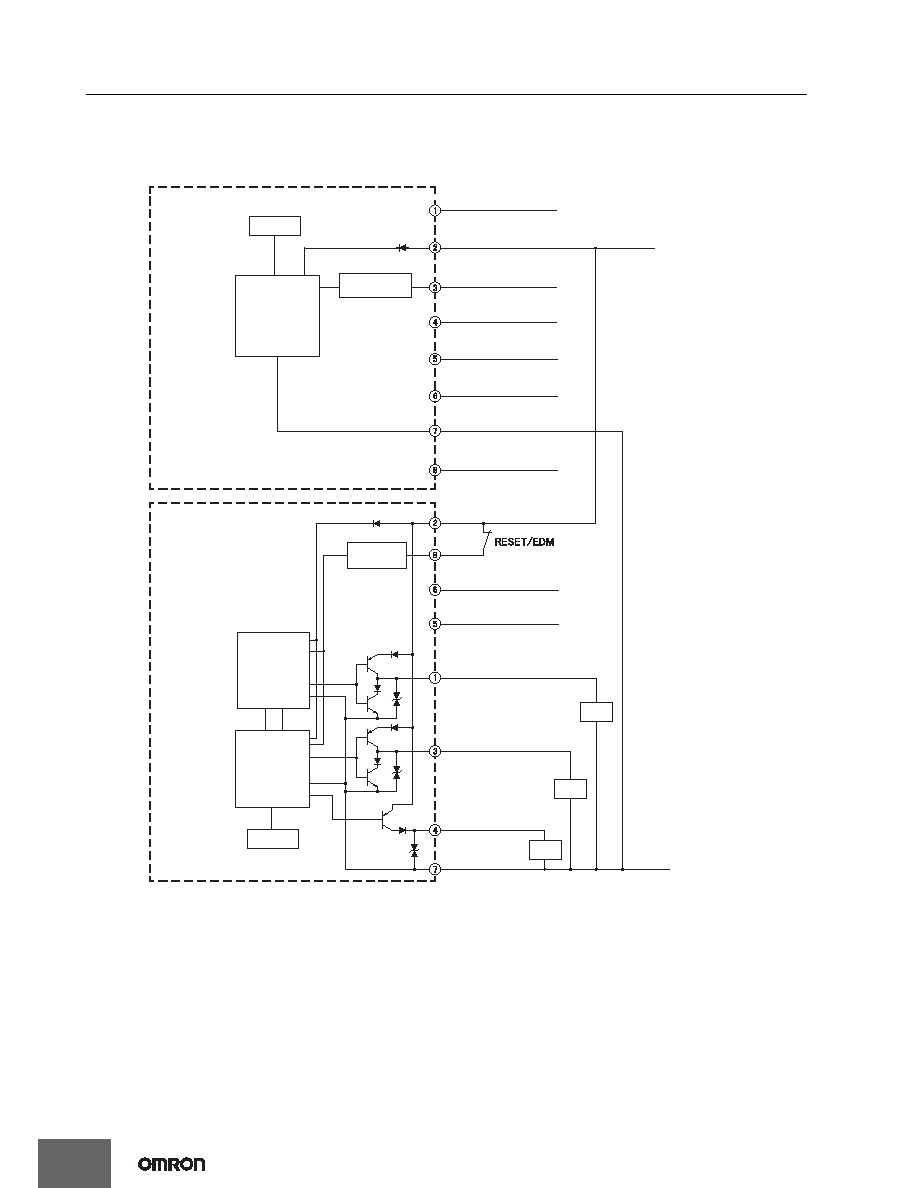

58 / 164 page ![]() F3SG-RR 58 Input/Output Circuit Entire Circuit Diagram The entire circuit diagram of the F3SG-RR is shown below. The numbers in the circles indicate the connector's pin numbers. PNP Output +24 VDC Brown Black TEST Yellow Not used White Not used Blue Brown Red White OSSD 2 Pink MUTE B /PC COM (-) * Gray MUTE A /PC COM (+) * Black OSSD 1 Yellow AUX Blue EDM circuit 0 VDC Gray Not used Pink Not used Red Not used Load Indicator Emitter Main Circuit Test Input Circuit Receiver Main Circuit 2 Receiver Main Circuit 1 Indicator Load Load * This line is used for communication with a PC using the F39-GIF-1 Interface Unit. |
|
