F3SG-RE
81

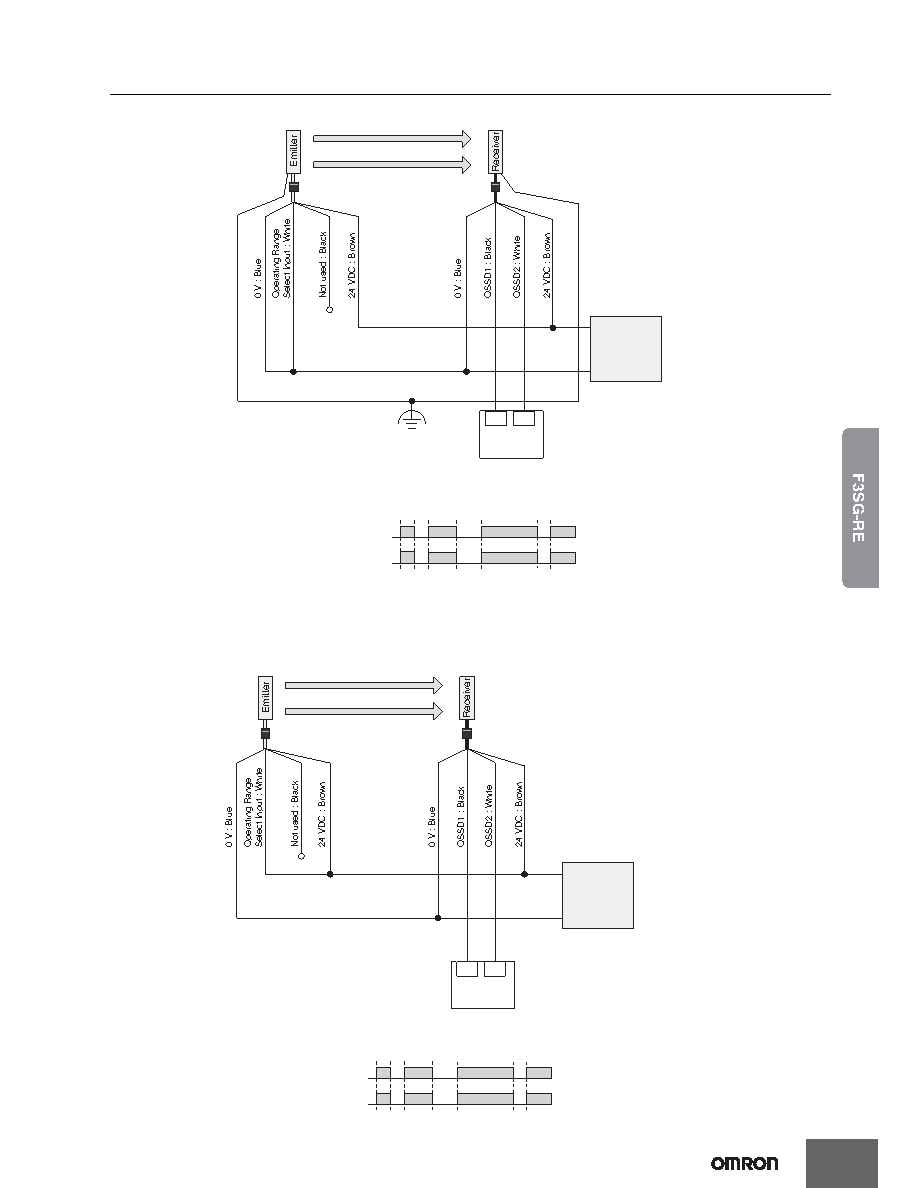

Connections (Basic Wiring Diagram)
Short Mode
Note: Functional earth connection is unnecessary when you use the F3SG-RE in a general industrial environment where noise control or stable
power supply is considered. However, when you use the F3SG-RE in an environment where there may be excessive noise from
surroundings or stable power supply may be interfered, it is recommended the F3SG-RE be connected to functional earth.
The wiring examples in later examples do not indicate functional earth. To use functional earth, wire an earth cable according to the example
above. Refer to Safety Light Curtain F3SG-R Series User's Manual for more information.
Long Mode
Note: For the functional earth connection, refer to the Short Mode example.
+24 V
0 V
DC
Power
Supply
Safety
Controller *1*2
IN1
IN2
Unblocked
Blocked
OSSD
Functional Earth
Beam state
*1.Refer to page 82 for more information.
*2.The safety controller and the F3SG-RE must share the power supply or be connected to the common
terminal of the power supply.
IN1
IN2
+24 V
0 V
DC
Power
Supply
Safety
Controller *1*2
Unblocked
Blocked
OSSD
Beam state
*1.Refer to page 82 for more information.
*2.The safety controller and the F3SG-RE must share the power supply or be connected to the common
terminal of the power supply.
