Specifications

External Memory Expansion Port (Port A)

MOTOROLA

DSP56362 Advance Information

2-49

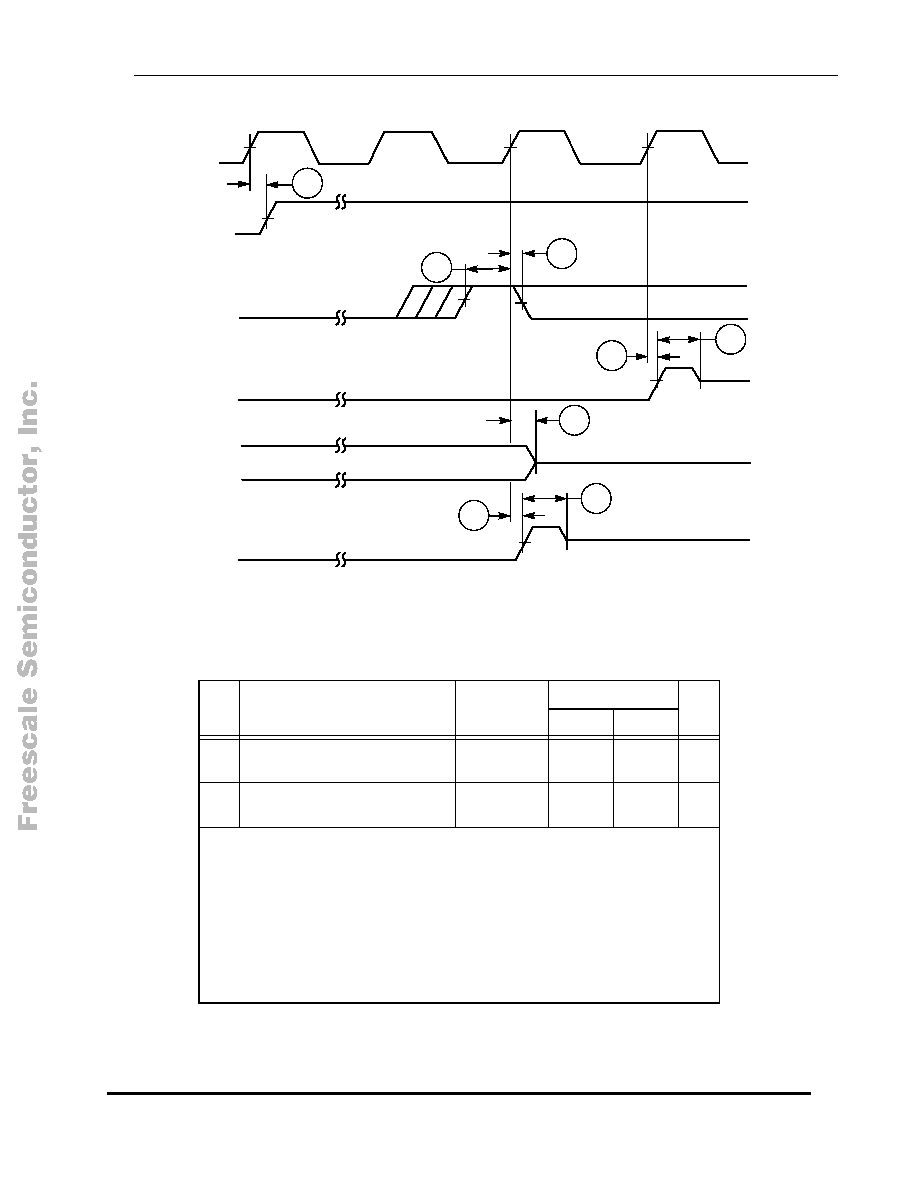

Figure 2-24 Bus Release Timings Case 2 (BRT Bit in OMR Set)

Table 2-19 Asynchronous Bus Arbitration timing

No.

Characteristics

Expression

100 MHz

Unit

Min

Max

250

BB assertion window from BG

input negation.

2 .5* Tc + 5

—

251

Delay from BB assertion to BG

assertion

2 * Tc + 5

—

Comments:

Bit 13 in the OMR register must be set to enter Asynchro-

nous Arbitration mode

At 100 MHz it is recommended to use Asynchronous Arbi-

tration mode.

If Asynchronous Arbitration mode is active, none of the tim-

ings in

Table 2-19 is required.

In order to guarantee timings 250, and 251, it is recommend-

ed to assert BG inputs to different 56300 devices (on the

same bus) in a non overlap manner as shown in

Figure

2-25.

A0–A17

AA0–AA3

CLKOUT

RD, WR

223

218

219

214

212

213

221

224

AA0483

Freescale Semiconductor, Inc.

For More Information On This Product,

Go to: www.freescale.com
