MPC8323E PowerQUICC II Pro Integrated Communications Processor Family Hardware Specifications, Rev. 4
18
Freescale Semiconductor
DDR1 and DDR2 SDRAM

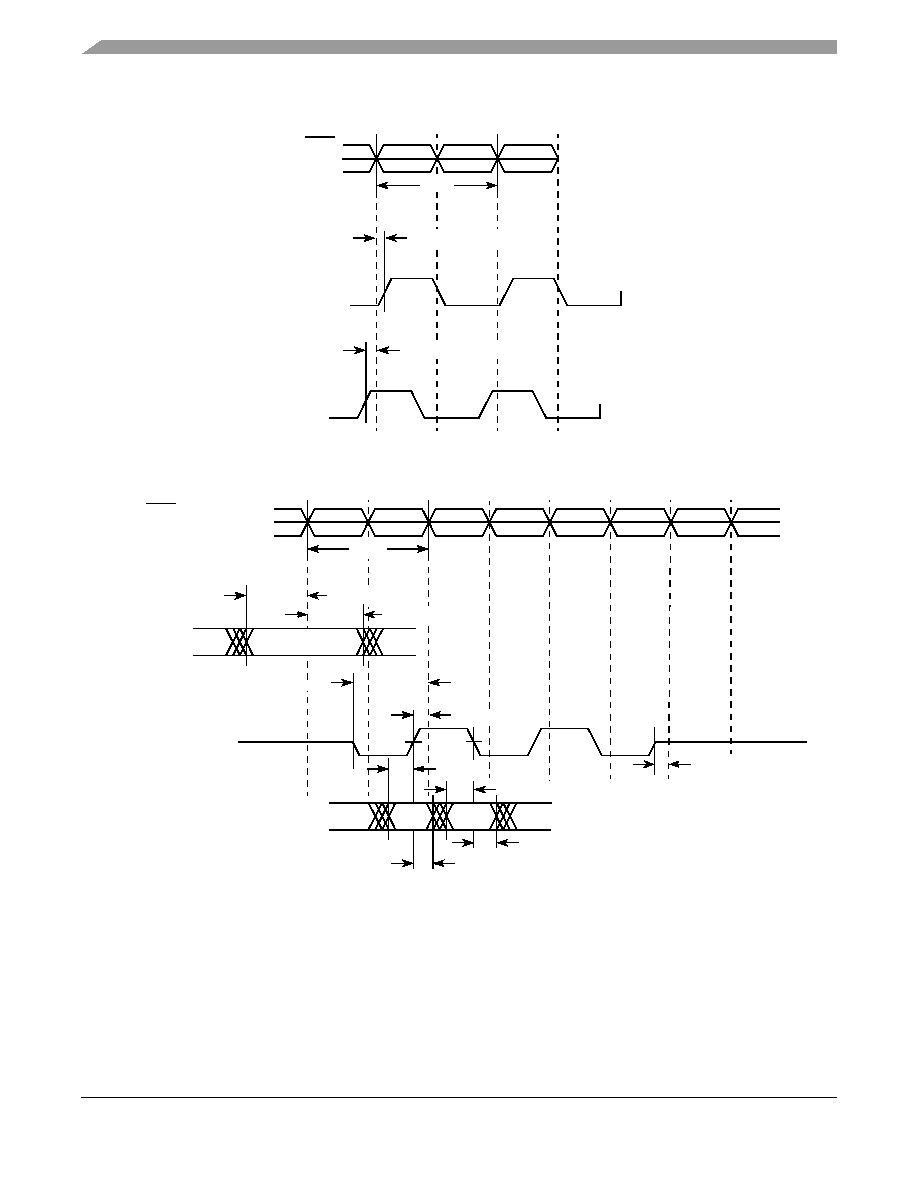

Figure 5 shows the DDR SDRAM output timing for the MCK to MDQS skew measurement (tDDKHMH).
Figure 5. Timing Diagram for tDDKHMH
Figure 6 shows the DDR1 and DDR2 SDRAM output timing diagram.
Figure 6. DDR1 and DDR2 SDRAM Output Timing Diagram
MDQS
MCK
MCK
tMCK
MDQS
tDDKHMH(max) = 0.6 ns
tDDKHMH(min) = –0.6 ns
ADDR/CMD
tDDKHAS,tDDKHCS
tDDKLDS
tDDKHDS
MDQ[x]
MDQS[n]
MCK[n]
MCK[n]
tMCK
tDDKLDX
tDDKHDX
D1
D0
tDDKHAX,tDDKHCX
Write A0
NOOP
tDDKHME
tDDKHMP
tDDKHMH
